Powerful Intelligent Platform for ADAS and ANPR/AFR Powered by 9/8th Gen Intel® Core™ Processor

  • 9/8th Gen Intel® Core™ processor
  • 8 x Independent Intel® I210-IT 10/100/1000 PoE port, 802.3af/at
  • AI accelerator MXM module supported
  • ultraONE+ for 10-Meter video + audio output
  • 2 x External SSD and 2 x mSATA for RAID 0, 1, 5, 10
  • 2 x WWAN module and 3 x SIM socket with eSIM option
  • Fan/fanless design
  • 3 x Mini PCIe and 1 x M.2
  • CE/FCC/E mark certified

Introduction

Product Overview

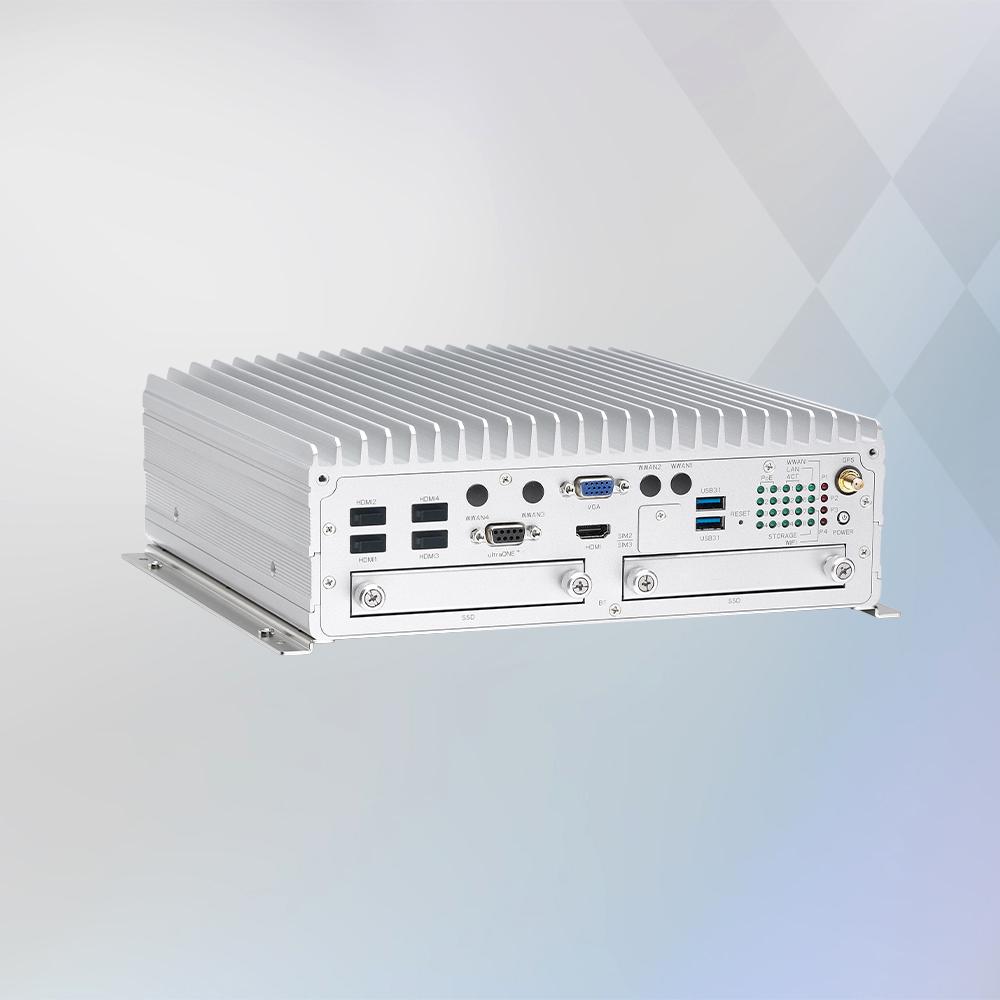

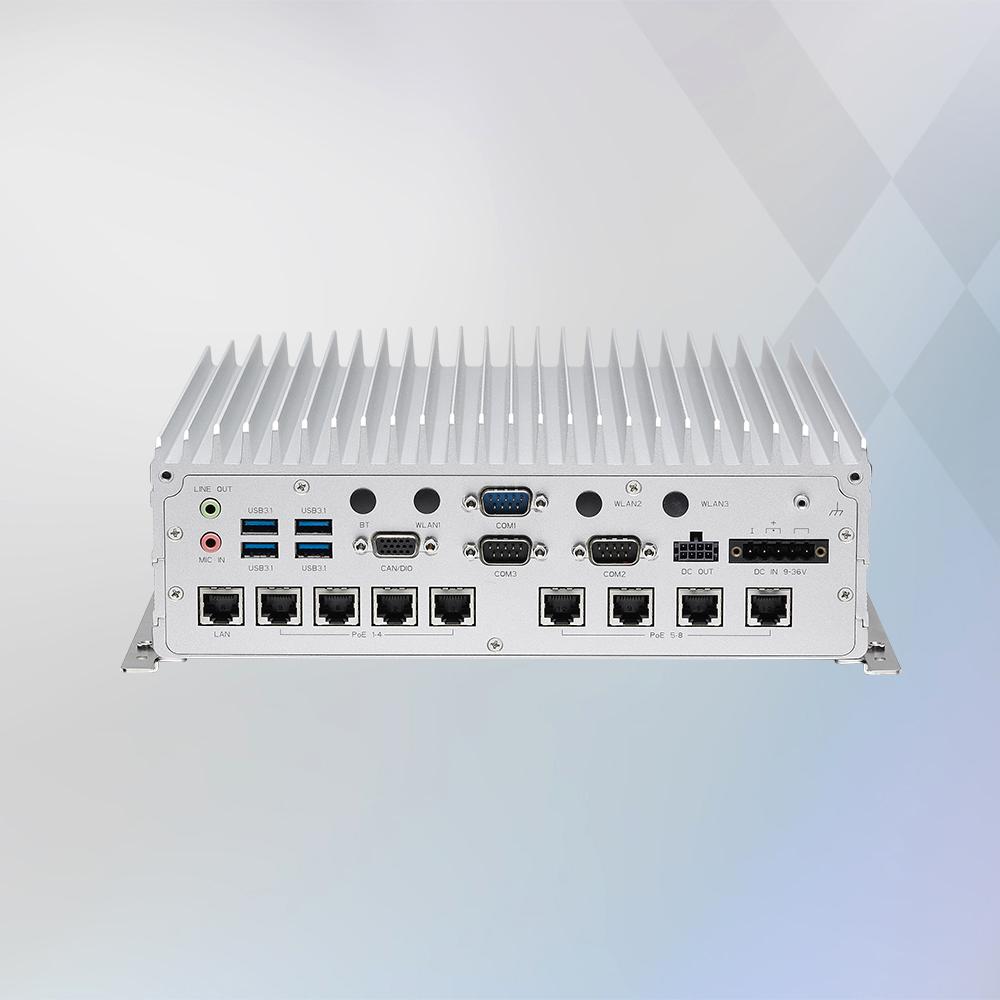

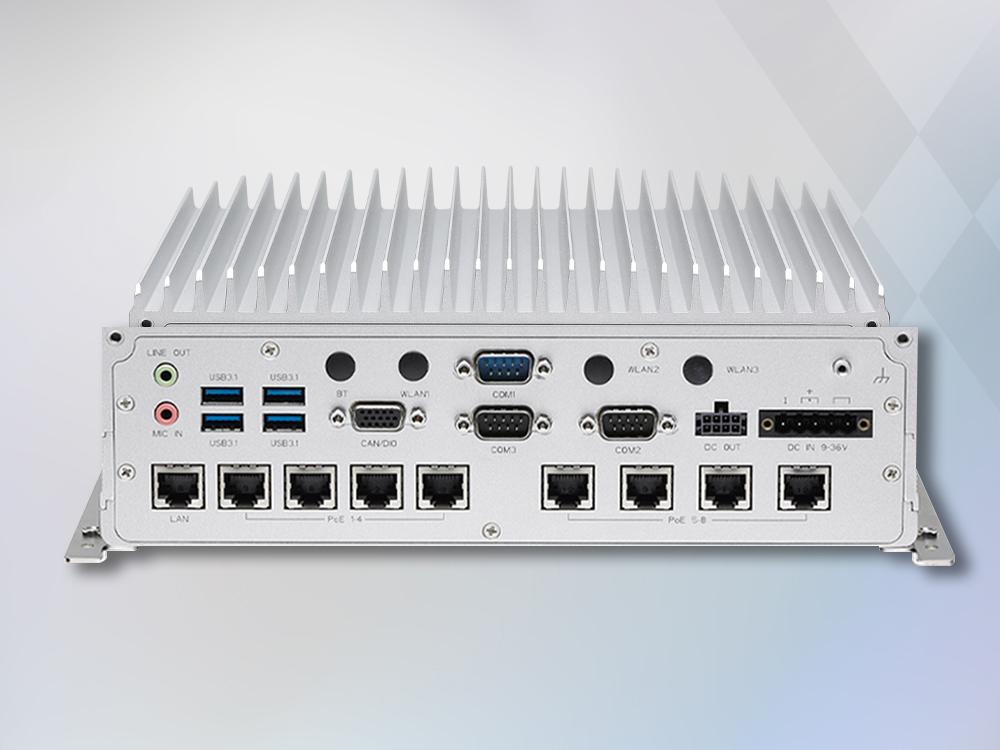

The ATC 8010 features a fan or fanless design and a powerful Artificial Intelligence (AI) platform with low power consumption. It is specifically designed for applications such as ANPR, AFR, and other graphics-intensive tasks. Its updated 9/8 Gen Intel® Core™ processor and AI accelerator MXM module guarantee the graphics performance, which satisfies with most of the AI requirement. Its eight PoE ports offer wide bandwidth and precise control to the analysis of big video data. In addition, ultraONE+ technology supports video and audio transmission over distances of up to 10 meters.



HDMI® and VGA display outputs allow users to monitor live video without delay or blind spots. Support for RAID levels 0, 1, 5, and 10 ensures data protection for video stored on dual external SSDs and dual mSATA modules.

Specifications

  • CPU
    9/8th Gen Intel® Core™ processor
  • Chipset
    Intel® Q370 platform controller hub
  • Memory
    2 x 260-pin DDR4 SO-DMIM, up to 64GB, 32GB per DIMM
  • Graphics
    NVIDIA Quadro® MXM module
  • Storage
    2 x 2.5” SATA 3.0 external SSD
    2 x mSATA
  • Display
    1 x HDMI® 1.4b from Intel® CPU, up to 4096x2160@30Hz
    1 x VGA, up to 1920x1200@60Hz
    4 x HDMI® from MXM module
    1 x ultraONE+ for 10M video + audio output + DC 24V output
  • Audio
    1 x Mic in, 1 x Line out
  • LAN
    8 x PoE 802.3af/at, up to 60W
    1 x LAN, I210-IT 10/100/1000 Mbps
  • COM
    2 x DB9 for full RS-232
    1 x DB9 for full RS-232/422/485 (RI, 5V 0.5A, 12V 0.5A)
    1 x DB15
  • USB
    6 x USB 3.2 Gen 2, Type-A
  • GPIO
    4 x GPI, 4 x GPO
  • CAN
    1 x Isolated CAN bus 2.0B
  • M.2
    1 x M.2 Key B 3042 (USB 2.0, USB 3.2 Gen 1)
  • PCIe
    1 x Full size Mini PCIe socket (USB 2.0, PCIe 3.0, SATA 3.0)
    1 x Full size Mini PCIe socket (USB 2.0)
  • Power
    DC 9V~36V
  • Dimensions
    260.0mm (W) x 256.0mm (D) x 90.1mm (H)
  • Weight
    7.5kg w/ MXM inside
  • Operating System
    Windows 11
    Windows 10
    Linux
  • Environment
    Operating temperature: -30°C~60°C (w/ industrail SSD) with air flow
    Storage temperature: -40°C~80°C
    Relative humidity: 90% (non-condensing)
  • Certifications
    CE approval, FCC Class A, E13 mark, UKCA
  • GNSS
    u-blox NEO-M8N GNSS module for GPS/Gloness/QZSS/Galileo/Beidou
    Optional modules with dead reckoning available
    Built-in G Sensor
  • TPM
    TPM 2.0
  • WWAN
    1 x Full size mini-PCIe socket (USB 2.0), optional M.2 3042 key B
    1 x M.2 3042 Key B 3042, (USB 2.0, USB 3.2)
