Introduction
Product Overview

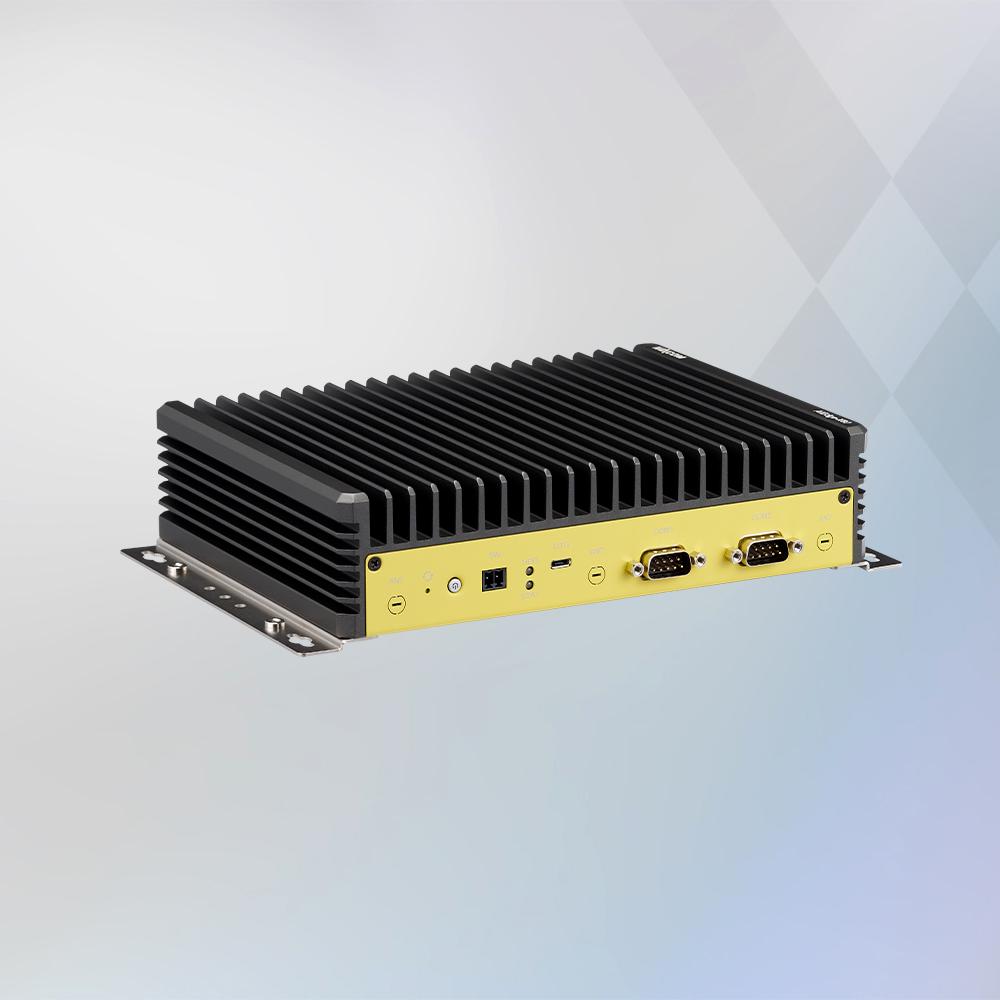

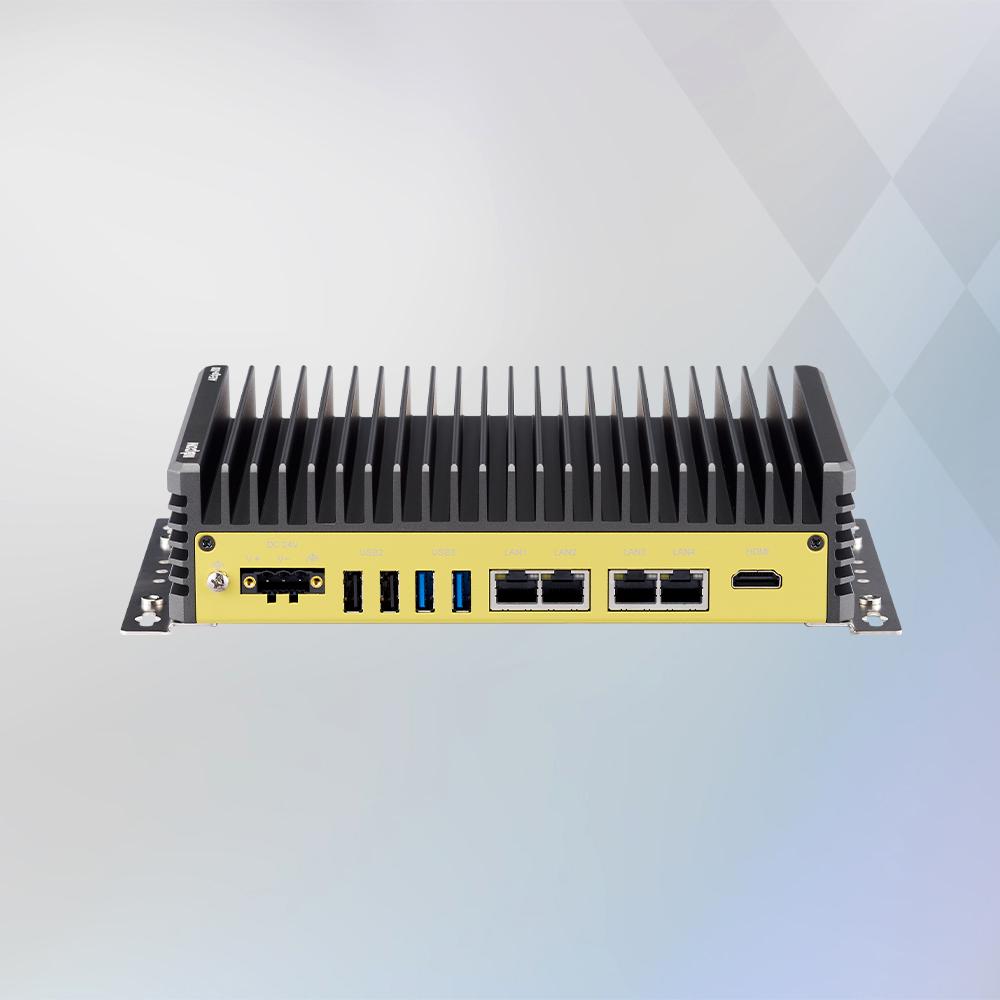

Powered by NVIDIA® Jetson Orin™ NX system on module (SoM), it can support multiple AI application pipelines with NVIDIA® Ampere architecture GPU for deep learning and vision accelerators, AIEdge-X®80 is a fanless edge AI computer promises up to 100 TOPS of AI inference acceleration performance. This gives you up to 3X the performance of Jetson AGX Xavier™ and up to 5X the performance of Jetson Xavier™ NX. AIEdge-X®80 offers 1 x HDMI®, 2 x COM port, 2 x USB 3.2, and 2 x USB 2.0 ports. Thus, AIEdge-X®80 is dedicated for image AI processing system on object detection which can be utilized in sorting machine, security management, parcel tracking system, and traffic enforcement.
Specifications
-
CPUNVIDIA® Jetson Orin™ NX 16GB
NVIDIA® Jetson Orin™ NX 8GB -
FanFanless
-
MemoryOnboard LPDDR5, 16GB
Onboard LPDDR5, 8GB -
Graphics1024-core NVIDIA® Ampere GPU with 32 Tensor Cores
-
Storage1 x M.2 2280 Key M SSD (PCIe Gen 3 x 4)
-
Display1 x HDMI 1.4, up to 4096 x 2160@60Hz
-
LAN4 x GbE RJ45 port (3 x Intel® i210-IT, 1 x from SoM)
-
COM1 x COM 1, supports RS232/422/485
1 x COM 2, supports RS232 (only TX/RX) -
USB2 x USB 2.0, Type-A
2 x USB 3.2 Gen 1x1, Type-A
1 x USB OTG -
M.21 x M.2 2280 Key M SSD (PCIe Gen 3.0 x 4)
-
PCIe1 x Full-size Mini PCIe slot
- supports Wi-Fi / BT Module
1 x M.2 3042/3052 Key B
- supports 5G / LTE Module -
PowerDC 24V input
-
Dimensions240mm (W) x 154mm (D) x 54mm (H) (w/ wall mount)
-
Weight2.03 kg
-
Operating SystemNVIDIA® Jetpack™ 5.1.2
-
EnvironmentOperating temperature:
- Ambient with air flow: -20°C to 60°C
- Storage temperature: -20°C to 80°C
Relative humidity: 10%~95% (non-condensing)
Vibration protection:
- Random: 2Grms @ 5 ~ 500Hz, IE60068-2-64
- Sinusoidal: 2G @ 5 ~ 500Hz, IEC60068-2-6 -
CertificationsCE (EMC EN55032 + EN55024)
FCC Class A (EMI Part 15)
