NVIDIA® Jetson Orin Nano™ Solution Accelerated Edge AI Computer

  • Edge AI in-vehicle/rail computer
  • Built-in NVIDIA® Jetson Orin Nano™ SOM in Super Mode,
    up to 67 TOPS (INT8) AI performance

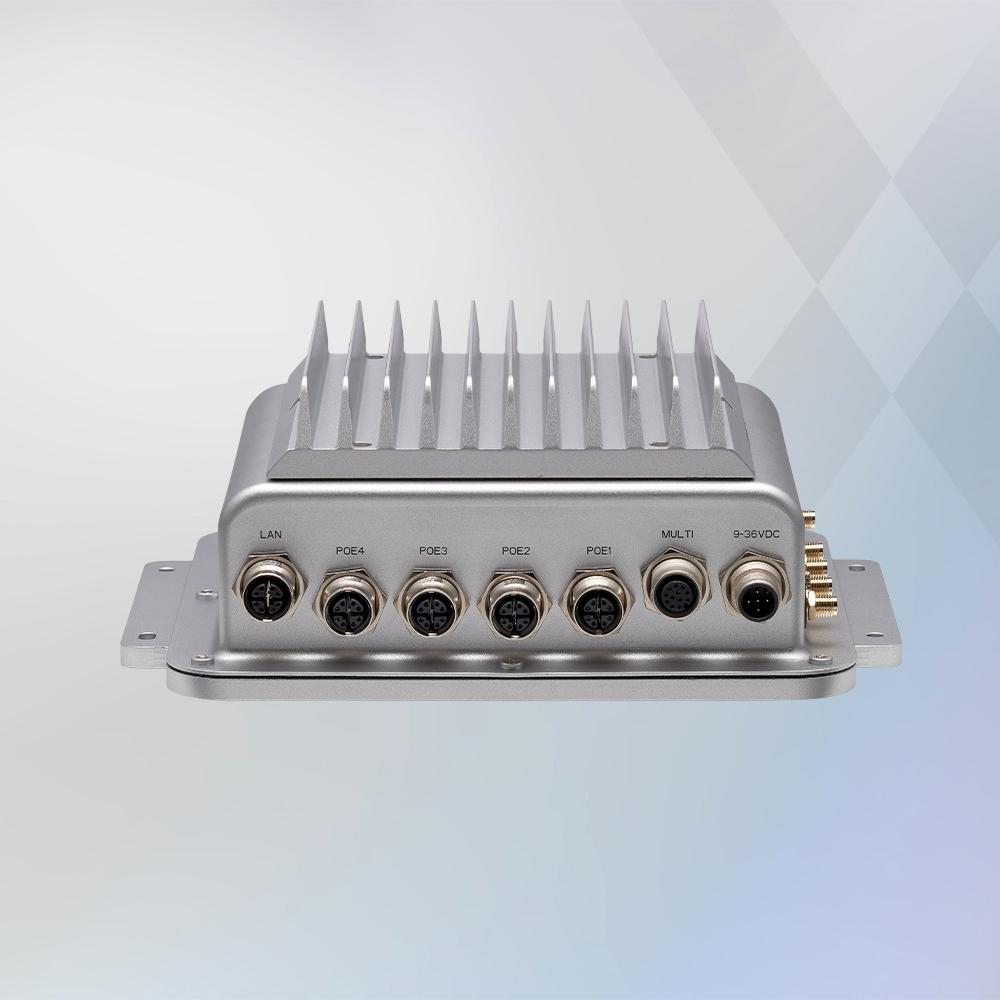

  • 4 x GbE PoE+ port for IP CAM/LiDAR sensors
  • HEVC/H.265 hardware codec,
    11 x 1080p30 compute power (decoded)
  • Wide range operating temperature of -30°C~70°C
  • The rugged, fanless design with IP67 rating
  • Ultra-speed PCIe 4.0 x4 NVMe SSD for data integrity,
    128GB SSD in default
  • NEXCOM Acceleration Linux (NAL) OS w/ JetPack 6.2 integrated
  • Expansible for LTE/5G NR & Wi-Fi 5/6
  • 9V~36V/24V DC-in for rail with ignition control & OCP/OVP
  • CE/FCC, UKCA, EN 50121-3-2 certified,
    E mark (ATC 3540 in reference)

Introduction

Product Overview

AI has become an essential component of automated vehicle technologies. With built-in cost-effective performance/watt-cost NVIDIA® Jetson Orin Nano™ SOM, the ATC 3520 can deliver up to 67 INT8 TOPS in Super Mode for running modern AI workloads while consuming 25W low power. This is suitable for AI power IoT gateway, OHV AI Edge recognition, AI traffic sign control, and factory automation/machine vision, to enhance the productivity and lowering TCO.

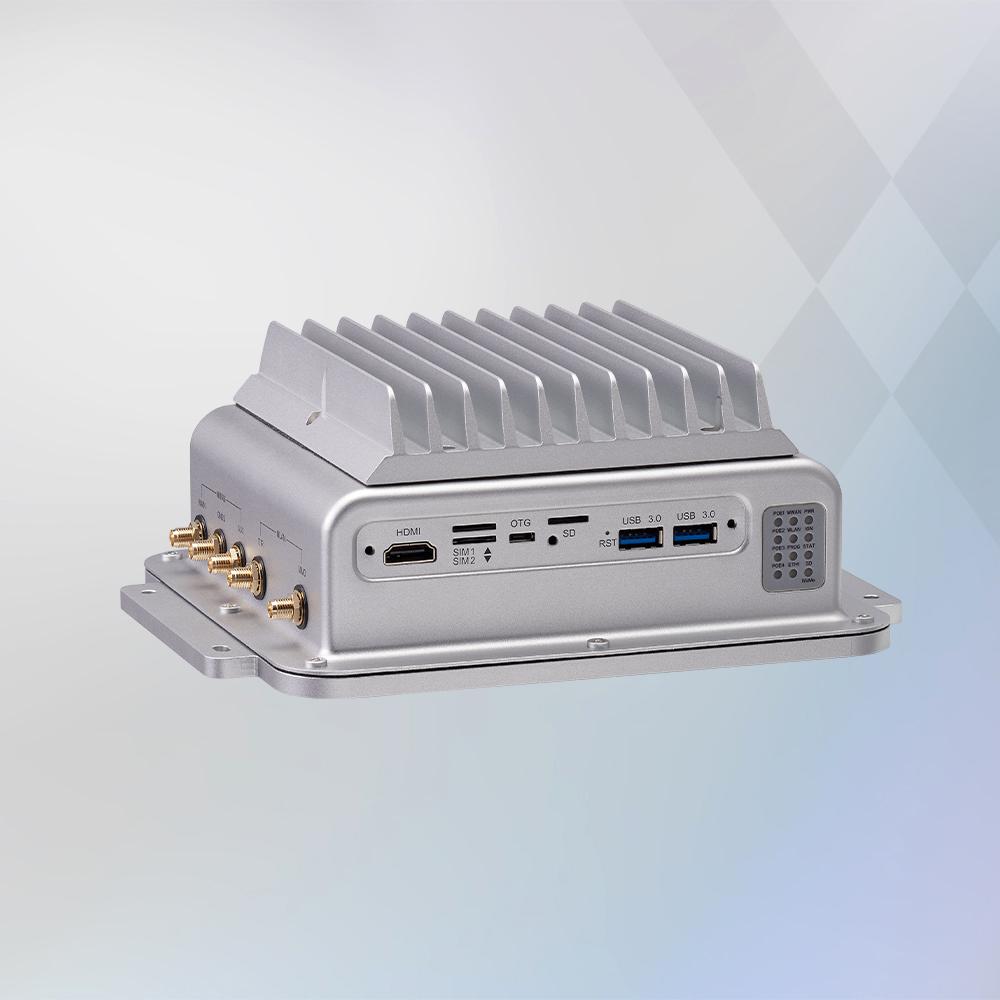

The ATC 3520 is a fanless, compact, and IP67 certified computer. It features DC 9V~36V with IGN control, four PoE+ ports for IP CAM deployment to 4Kp30/1080p60. Moreover, the ATC 3520 is designed with diverse peripheral ports, like USB 3.2, isolation CAN bus, RS-232, Console, DI/DO, OTG, and HDMI® for connecting to a wide range of devices/sensors.



With the 5G NR, Wi-Fi 5/6 modules installed, the ATC 3520 can enhance AI inference through Cloud Service Provider (CSP). As for harsh environment applications, the ATC 3520 can operate at a wide range temperature of -30°C~65°C and meet the MIL-STD-810G military standard for vibration and shock resistance. In terms of regulation, the ATC 3520 is compliant with CE/FCC Class A, UKCA and EN 50121-3-2.

Specifications

  • CPU
    6-core Arm® Cortex®-A78AE v8.2 64-bit, 1.5MB L2 + 4MB L3
  • Memory
    4GB 64-bit LPDDR5 51 GB/s
  • Graphics
    512-core NVIDIA® Ampere architecture with 16 Tensor Cores
  • Storage
    1 x M.2 Key M 2280/3080 PCIe 3.0 x4 NVMe SSD, 128GB in default
  • Display
    1 x HDMI® 2.0a/b, up to 3840x2160@60Hz
  • LAN
    1 x GbE port, 4 x GbE PoE+ port, X-coded
  • COM
    1 x RS-232 (Tx, Rx, CTS, RTS)
    1 x RS-232 (Tx, Rx)
  • USB
    2 x USB 3.2, Type-A
  • GPIO
    4 x GPI, 4 x GPO
  • CAN
    1 x CAN 2.0A/2.0B
  • M.2
    1 x M.2 Key B 3042/3052 socket (USB 3.2)
  • PCIe
    1 x Full size Mini PCIe socket (PCIe 3.0 + USB 2.0)
  • Power
    Nominal voltage: DC 9V~36V
  • Dimensions
    213mm (W) x 167mm (D) x 82.8mm (H) w/ mount bracket
  • Weight
    2.4kg
  • Operating System
    NEXCOM Acceleration Linux (NAL) w/ Jetpack 6.2 integrated
  • Environment
    Operating temperature: -30°C~65°C (NVIDIA® Jetson Orin Nano™@25W, w/ 30W PoE)
    Storage temperature: -40°C~85°C
    Relative humidity: 10%~95% (non-condensing)
  • Certifications
    CE approval, FCC Class A, UKCA
  • GNSS
    u-blox NEO-M9N GNSS module for GPS/Gloness/QZSS/Galileo/Beidou
    Optional DR (dead reckoning) function, NEO-M9V
  • WWAN
    1 x M.2 3042/3052 Key B socket (USB 3.2), 2 x micro SIM slots
