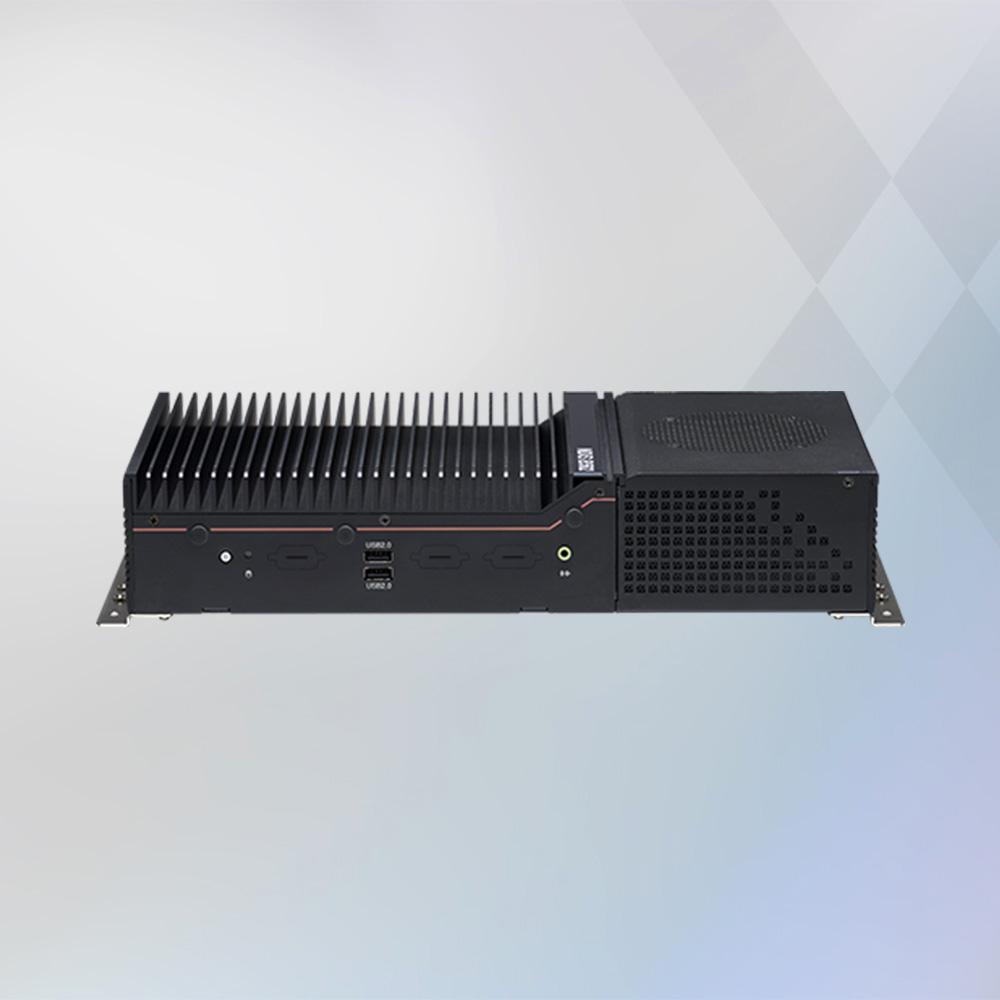

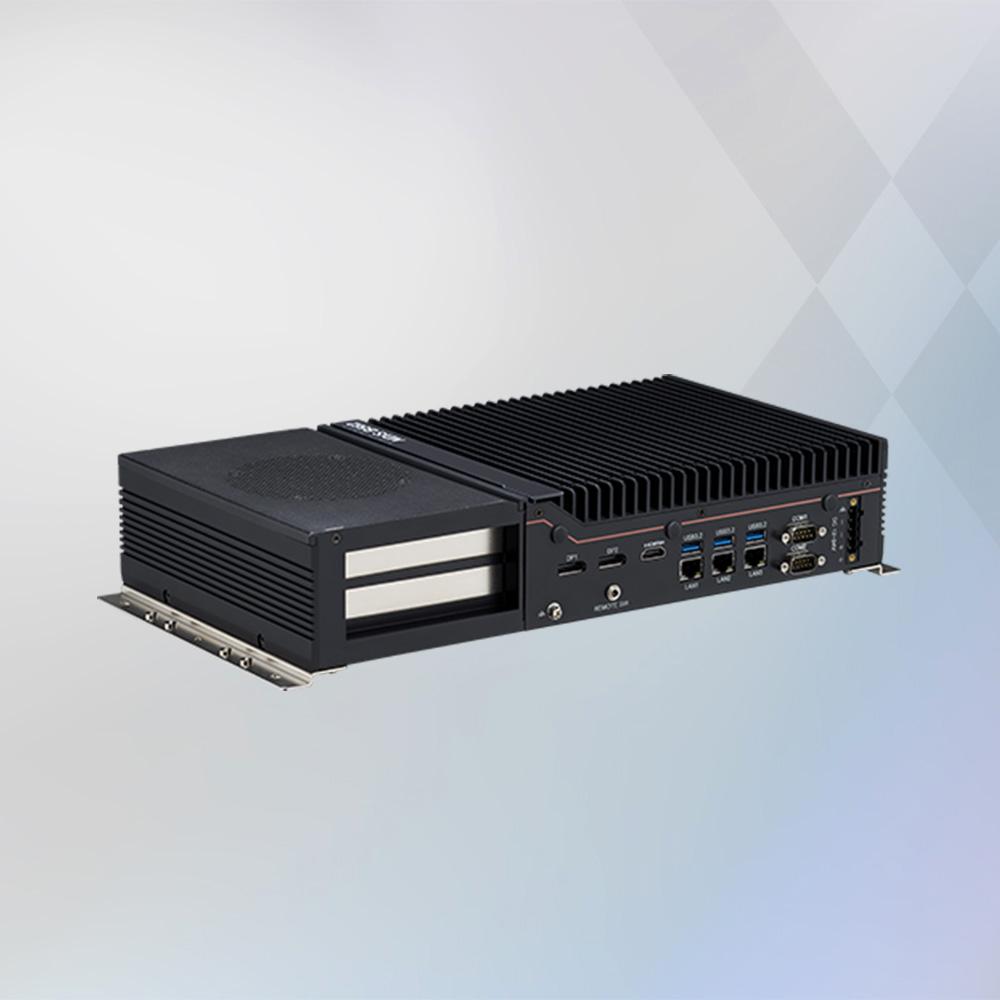

Duro Edge Computer Powered by Intel® Core™ Processor (Series 2)/Intel® Core™ i Processor

  • Intel® Core™ processor (Series 2)/14/13/12th Gen Intel® Core™ i processor
  • Support Intel® AMT technology
  • 2 x DDR5 SO-DIMM, up to 96GB
  • 1 x HDMI® 2.0 output, up to 4096 x2160@60Hz
  • 3 x Intel® LAN port
  • 3 x USB 3.2 Gen 1x1, 2 x USB 2.0, 2 x DP 1.2
  • Support PCIe 4.0 1x16/PCIe 4.0 2x8 expansion card/2 x 2.5” SSD swap bay
  • TPM 2.0 for security
  • 1 x M.2 Key B 3052/3042 for an optional 5G/LTE module
  • 1 x M.2 Key E 2230 for an optional Wi-Fi module
  • 1 x M.2 Key M 2280 for an optional SSD
  • Support DC +12V~24V power input

Introduction

Product Overview

The NDiS B562 is compatible with Intel® Core™ processor (Series 2) and 14/13/12th Gen Intel® Core™ i processor. When connected to the DockInfinity, it creates two half-height card spaces that can accommodate both graphics cards and other PCIe expansion cards to enhance functionality of system. Furthermore, the unit supports RAID 0 and RAID 1 configurations, which can be achieved by installing two 2.5-inch SATA SSDs.



The device features a wide-range 12V to 24V power input, ensuring stable operation even in environments with unstable power supply. This versatility makes it ideal for a variety of applications, including the self-service industry and smart parking systems. With three USB 3.2 ports and two COM ports (supporting RS-232/422/485), the NDiS B562 connects effortlessly to peripherals like AI cameras and sensors. For multi-display setups, the external I/O includes one HDMI® 2.0 port and two DisplayPort 1.2 ports, with support for additional displays via an external graphics card. Zero waste upgrade, no parts will be used up or thrown away during the expansion kit installation.

Specifications

  • CPU
    "Intel® Core™ processor (Series 2)
    - Intel® Core™ 7 processor 251TE, TDP 45W
    - Intel® Core™ 5 processor 221TE, TDP 45W
    - Intel® Core™ 5 processor 211TE, TDP 45W
    - Intel® Core™ 3 processor 201TE, TDP 45W
    14th Gen Intel® Core™ i processor
    -Intel® Core™ i9 processor 14900T, PBP 35W
    -Intel® Core™ i7 processor 14700T, PBP 35W
    -Intel® Core™ i5 processor 14500T, PBP 35W
    -Intel® Core™ i3 processor 14100T, PBP 35W"
  • Chipset
    Intel® PCH Q670E/H610E
  • Memory
    2 x DDR5 5200 SO-DIMM, non-ECC, unbuffered, up to 96GB
  • Graphics
    Intel® UHD Graphics
  • Storage
    1 x M.2 Key M 2280 for optional SSD (PCIe 3.0 x4, SATA 3.0)
  • Display
    "1 x HDMI® 2.0, up to 4096x2160@60Hz
    2 x DP 1.2, up to 4096x2160@60Hz"
  • Audio
    "1 x Line out
    1 x 4-pin header for speaker out, amplifier 2.5W/4Ω
    1 x 9-pin header for mic in"
  • LAN
    3 x 1GbE RJ45 port
  • COM
    "2 x COM port, supports RS-232/422/485
    4 x COM port (COM3~COM6, RS-232, reserved)"
  • USB
    "2 x USB 2.0
    3 x USB 3.2 Gen 1x1, Type-A"
  • GPIO
    8 x GPIO, 4 x DI, 4 x DO
  • M.2
    "1 x M.2 Key M 2280 (PCIe 3.0 x4)
    1 x M.2 Key E 2230 for an optional Wi-Fi module (PCIe 3.0 x1,USB 2.0)
    1 x M.2 Key B 2242/3042/3052 for an optional 5G/LTE module (PCIe 3.0 x1, USB 3.2)"
  • Power
    DC +12V~24V, 180W
  • Dimensions
    "-NDiS B562: 268mm (W) x 190.6mm (D) x 75.4mm (H) (w/ bracket)
    -NDiS B562 w/ DockInfinity: 388.3mm (W) x 190.6mm (D) x 75.4mm (H) (w/ bracket)"
  • Weight
    "-NDiS B562: 3kg
    -NDiS B562 w/ DockInfinity-2R8/R16F: 3.73kg
    -NDiS B562 w/ DockInfinity-2S: 4.05kg"
  • Operating System
    "Windows 11
    Windows 10, 64bit
    Linux"
  • Environment
    "Operating temperature: -20°C~60°C
    Operating temperature w/ graphics card: 0°C~45°C
    Storage temperature: -20°C~80°C
    Humidity: 10%~95% (non-condensing)"
  • Certifications
    "CE approval (EN 50035 + EN 50032)
    FCC Class A (Part 15B)
    LVD (EN 62368-1)"
  • TPM
    TPM 2.0
