NVIDIA® Jetson AGX™ Orin Solution Performance Edge AI Computing for Rail

  • Built-in NVIDIA® Jetson AGX Orin™ SOM,
    up to 200/275 TOPS (INT8) AI performance
  • Designed to be fanless, rugged, and compact
  • 6-port GbE PoE+ for IP CAM/LiDAR sensors, optional 1-port 10GbE
  • HEVC/H.265 hardware decode, supports up to 7 x 4K30
  • Wide range operating temperature of -25°C~70°C
  • Ultra-speed PCIe 4.0 x4 NVMe SSD for data integrity
  • Expansible for GNSS, LTE/5G NR & Wi-Fi 5/6
  • 24V DC-in for rail, ignition control & OCP/OVP
  • NEXCOM Acceleration Linux (NAL) integrated w/ JetPack 6.1
  • Military standard of MIL-STD-810H for anti-vibration/shock
  • CE/FCC, UKCA,  EN 50155
    (EN 55011, EN 50121-3-2, EN 61373, OT3, EN 45545) certified

Introduction

Product Overview

AI has become an essential component of automated vehicle technologies. With its built-in high performance NVIDIA® Jetson AGX Orin™ SOM, the ATC 3750-A6CR can deliver up to 200/275 TOPS workload on Artificial Intelligence (AI) processing and inference, supporting applications such as ADAS in Transportation/Construction, ANPR, AMR, Machine Learning (ML), ITS and factory automation.



Thanks to NEXCOM’s excellent thermal solutions, the ATC 3750-A6CR can work through its defined TDP (15W~60W) in harsh environments without a fan kit to achieve 200/275 TOPS workload performance.

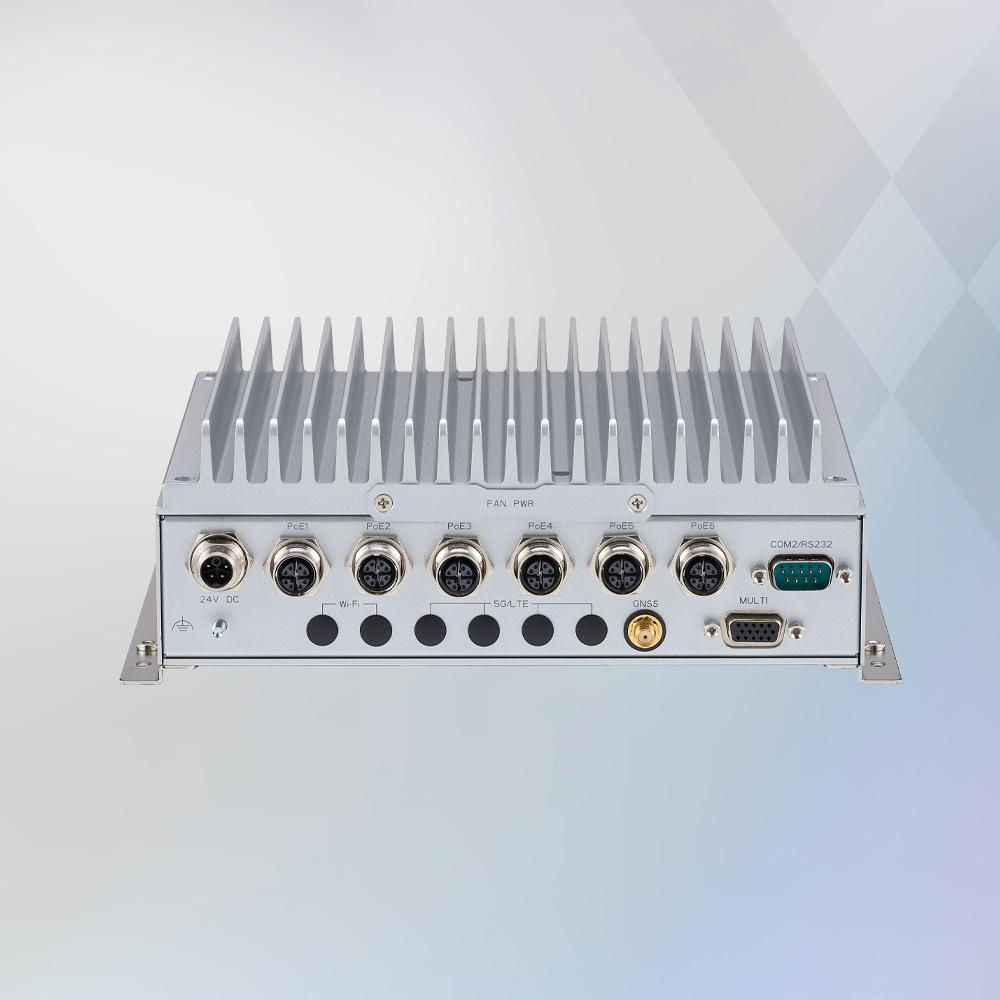

The ATC 3750-A6CR is a rugged, compact-size in-vehicle AI powered computer that features DC 24V (power isolation) with IGN control, 6 PoE+ (X-coded) for accessing IP CAM/LiDAR sensors, and rich peripheral ports, USB 3.2, isolation CAN bus, RS-232, Console, DI/DO, OTG and HDMI®. With the installation of 5G NR, Wi-Fi 5/6 modules, the ATC 3750-A6CR can collaborate with CPS for AI model re-training, making it suitable for deployment in sophisticated applications such as ADAS/ANPR/AIaided ITS/Construction, etc. In harsh environments, the ATC 3750-A6CR can operate at a wide temperature range of -25°C~70°C and meet the MIL-STD-810H military standard for anti-vibration and shock. For regulation, the ATC 3750-A6CR is certified by CE/FCC Class A, UKCA, EN 45545 and EN 50155.

Specifications

  • CPU
    12-core Arm® Cortex®-A78AE v8.2 64-bit, 3MB L2 + 6MB L3
  • Memory
    64GB 256-bit LPDDR5, 204.8GB/s
  • Graphics
    2048-core NVIDIA® Ampere architecture with 64 Tensor Cores
  • Storage
    64GB eMMC 5.1 flash storage, 200MHz (HS400 or HS533)
    1 x Accessible SD card (SDXC-I/UHS-I, SD 3.0)
    1 x M.2 Key M 2280 (PCIe 4.0 x4) NVMe SSD
  • Display
    1 x HDMI® 2.0a/b, up to 3840x2160@60Hz
  • LAN
    6 x GbE port, M12 X-coded connector
  • COM
    2 x RS-232 (Tx, Rx, RTS, CTS)
  • USB
    2 x USB 3.2 Gen 2
  • GPIO
    4 x GPI, 4 x GPO
  • CAN
    2 x CAN FD, compatible with CAN 2.0A/2.0B
  • M.2
    1 x M.2 Key B 3042/3052 socket (USB 3.2/2.0)
    1 x M.2 Key E 3030 socket (PCIe 4.0, USB 2.0) for Wi-Fi 5/6
  • PCIe
    1 x Full size Mini PCIe socket (PCIe 4.0, USB 2.0)
  • Power
    Nominal voltage: DC 24V (14.4V~33.6V), K-coded connector
  • Dimensions
    234.0mm (W) x 172.8mm (D) x 80.5mm (H) w/ mount bracket
  • Weight
    3.5kg
  • Operating System
    NEXCOM Aided Linux (NAL) w/ Jetpack 6.1 integrated
    NEXCOM custom functions (GNSS, 5G/NR, 6-axis sensor, MCU control)
    Ubuntu 22.04 (L4T 36.3, Linux Kernel 5.15)
  • Environment
    Operating temperature: -25°C~70°C (TDP 15W~60W, fanless, w/ 80W PoE)
    Storage temperature: -40°C~85°C
    Relative humidity: 10%~95% (non-condensing)
  • Certifications
    CE approval, FCC Class A, UKCA, EN 45545 and EN 50155 certified
  • GNSS
    u-blox NEO-M9N GNSS module for GPS/Gloness/QZSS/Galileo/Beidou
    Optional DR (Dead Reckoning) function
  • WWAN
    1 x M.2 Key B 3042/3052 socket (USB 3.2/2.0), 2 x nano-SIM slot
