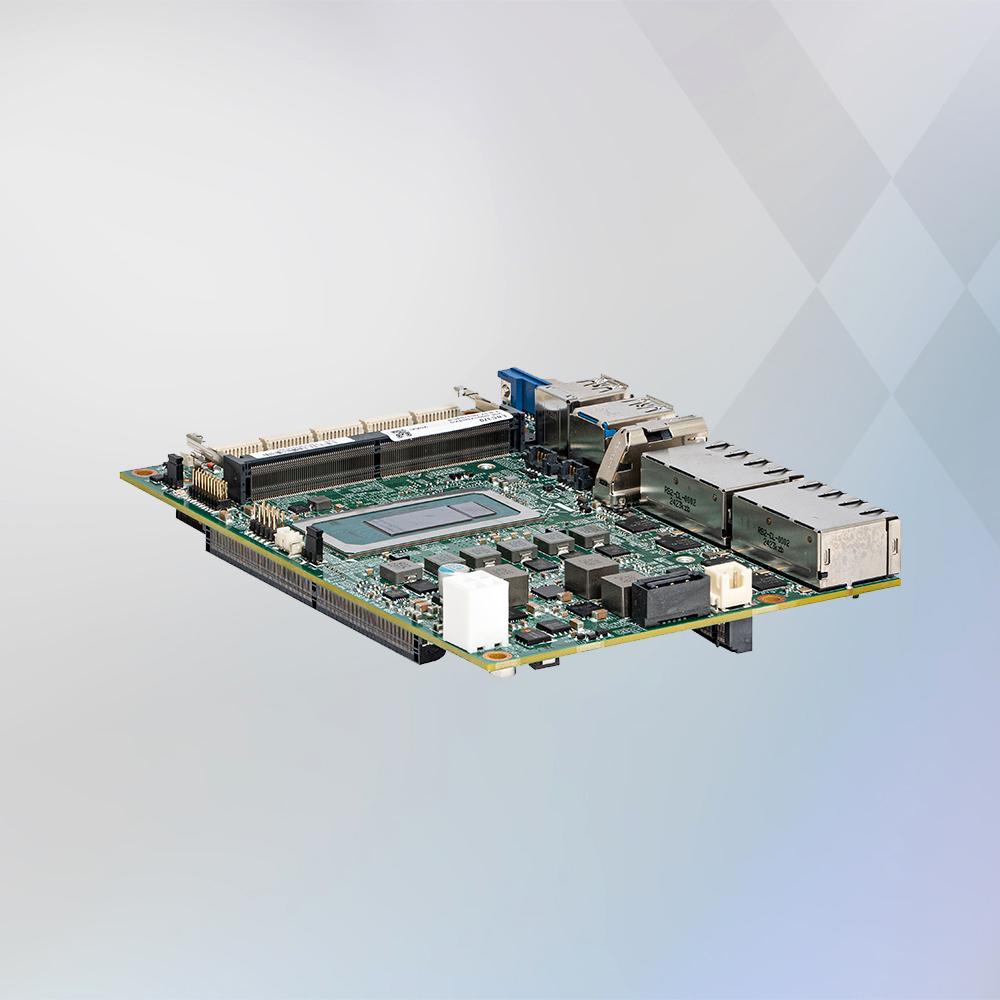

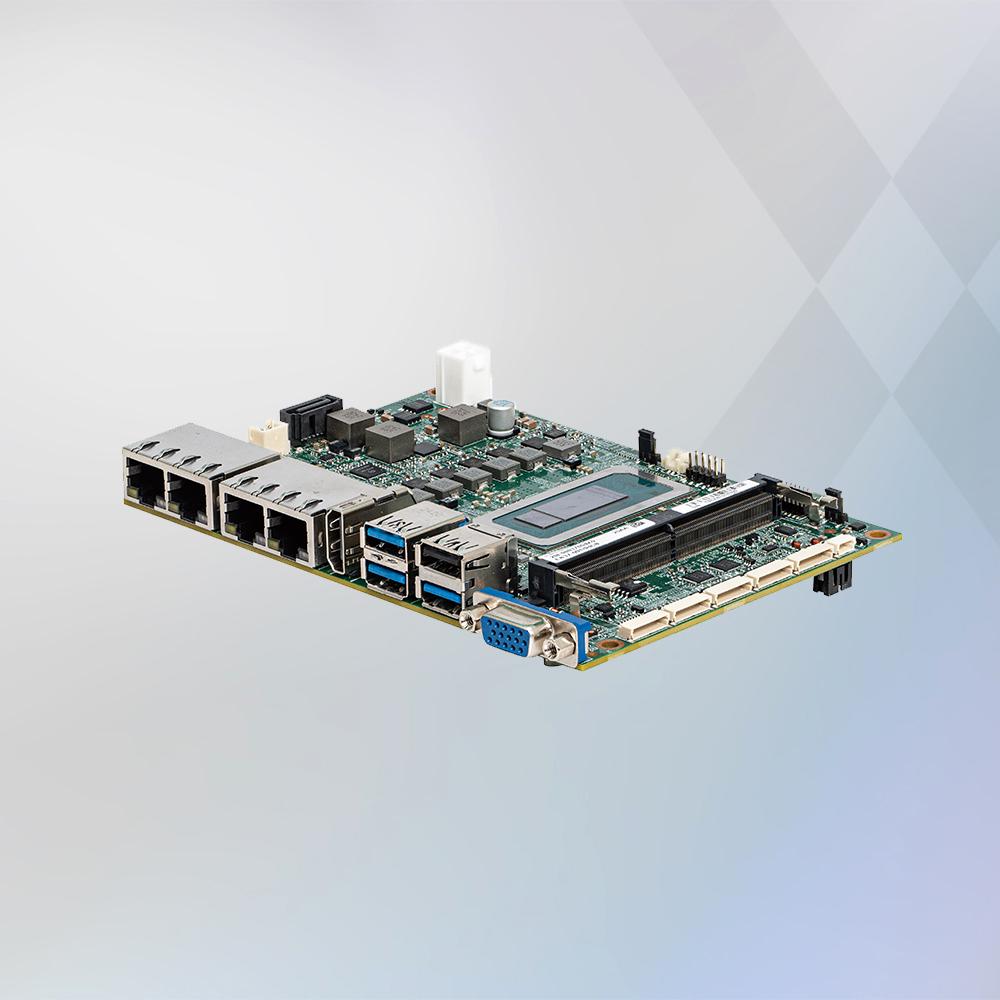

3.5" SubCompact Board with 13th Gen Intel® Core™ Processor

  • Intel® 13th Gen Intel® Core™ i7 processor, 28W
  • 1 x DDR5 5200 SO-DIMM, non-ECC, up to 32GB
  • 1 x VGA, 1 x HDMI®, supports multiple displays
  • TPM 2.0
  • 24V DC IN
  • 4 x 2.5 GbE LAN
  • 3 x USB 3.2 Gen2, 3 x USB 2.0, 2 x RS-232, 2 x RS-232/485/422, 1 x SATA 3.0 , 16-bit GPIO (8 IN , 8 OUT)
  • 1 x MXM slot (PCIe x4 LANS for MXM GPU card support)
  • 1 x M.2 Key B , 1 x M.2 Key M

Introduction

Product Overview

The EBC370 is a 3.5” single board computer (SBC) powered by 13th Gen Intel® Core™ processors. It features a SO-DIMM socket, supporting up to 32GB of DDR5 5200MHz memory with non-ECC support, along with integrated Intel® Iris® Xᵉ graphics.



Designed for performance and versatility, the EBC370/EBC370X includes an MXM slot, accommodating graphics accelerator cards or I/O expansion cards to meet diverse AI and visual needs.



With a wide operating temperature ranging from -20°C to 70°C, the EBC370X sustains in harsh environments, making it ideal for outdoor and semioutdoor embedded applications including kiosks, home automation, and thin clients.

Specifications

  • CPU
    Intel® Core™ i7-1370PRE, 28W
  • Chipset
    Intel® SOC
  • Memory
    1 x DDR5 5200 SO-DIMM, non-ECC, up to 32GB
  • Graphics
    Intel® Iris® Xe Graphics
  • Storage
    1 x SATA 3.0 / 1 x SATA power connector x 1(+5V)
    1 x M.2 Key M 2280 (SATA/PCIe x4 NVME)
  • Display
    1 x VGA, up to 1920x1080@60Hz
    1 x HDMI® 2.0b, up to 3840x2160@30Hz
  • LAN
    4 x 2.5GbE LAN
  • COM
    4 x COM port
    - 2 x RS-232, 2 x RS-232/485/422
  • USB
    3 x USB 3.2 Gen 2
    1 x USB 2.0
    2 x USB 2.0 (Pin Header)
  • GPIO
    8 x IN, 8 x Out
  • M.2
    1 x M.2 Key M 2280 (SATA/PCIe x4 NVME)
    1 x M.2 Key B 3052 (for LTE/ 5G), (PCIe x2/USB 3.0 ) with nano-SIM
  • PCIe
    1 x MXM slot (PCIe x4 LANS)
  • Power
    DC 24V input
  • Dimensions
    146mm (W) x 105mm (H)
  • Environment
    Board level operation temperature: 0°C~60°C
    Storage temperature: -40˚C~85˚C
    Relative humidity:
    - 10%~95% (operating, non-condensing)
    - 5%~95% (non-operating, non-condensing)
  • Certifications
    CE
    FCC Class A
  • TPM
    TPM 2.0
