Product Overview

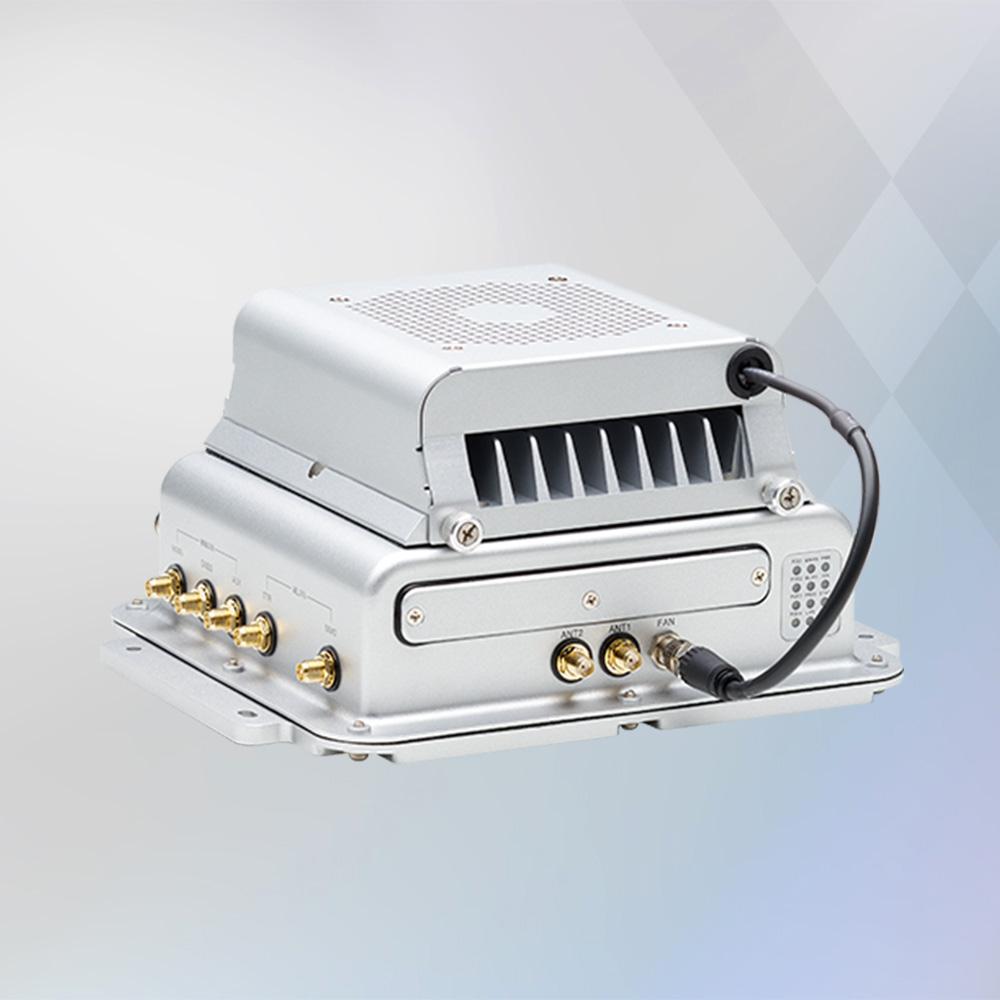

AI has become a vital part of autonomous vehicle technologies. Equipped with the high-performance NVIDIA Jetson Orin™ NX SoM, the ATC 3560-IP7-NX4CF delivers up to 157 TOPS of AI inference performance (16GB version in Super Mode), making it ideal for applications such as Advanced Driver Assistance Systems (ADAS) in transportation and construction, Automatic Number Plate Recognition (ANPR), Autonomous Mobile Robots (AMR), Machine Learning (ML), Intelligent Transportation Systems (ITS), and factory automation.
Thanks to NEXCOM’s advanced thermal design and its full IP67 rating, the ATC 3560-IP7-NX4CF can maintain up to 117 TOPS (8GB version) or 157 TOPS (16GB version) even in harsh conditions, enabling consistent real-time AI inference.
The ATC 3560-IP7-NX4CF is purpose-built for in-vehicle AI computing. It supports DC 9V to 36V power with IGN control, and features four GbE PoE ports for long-distance IP cameras and LiDAR sensors. It also offers a wide range of I/O, including USB 3.2, isolated CAN bus, RS-232, console port, digital I/O (DI/DO), OTG, and HDMI®. With optional 5G NR and Wi-Fi 5/6 modules, the ATC 3560-IP7-NX4CF can connect with CPS (Cyber-Physical Systems) for AI model retraining, enhancing inference precision in the field.
Built to endure tough conditions, the ATC 3560-IP7-NX4CF supports an operating temperature range of -25°C to 60°C, and complies with MIL-STD-810H for resistance to shock and vibration. It is certified to CE/FCC Class A, UKCA, and E-mark standards.
Specifications
-
CPU6-core Arm® Cortex®-A78AE v8.2 64-bit
8-core Arm® Cortex®-A78AE v8.2 64-bit -
Fanw/ fan kit
-
Memory8GB 128-bit LPDDR5 102.4GB/s
16GB 128-bit LPDDR5 102GB/s, 3200MHz in frequency -
Graphics1024-core NVIDIA® Ampere architecture with 32 Tensor Cores
-
Storage1 x M.2 Key M 2280/3080 PCIe 3.0 x4 NVMe SSD, 128GB in default
-
Display1 x HDMI® 2.0a/b, up to 3840x2160@60Hz
-

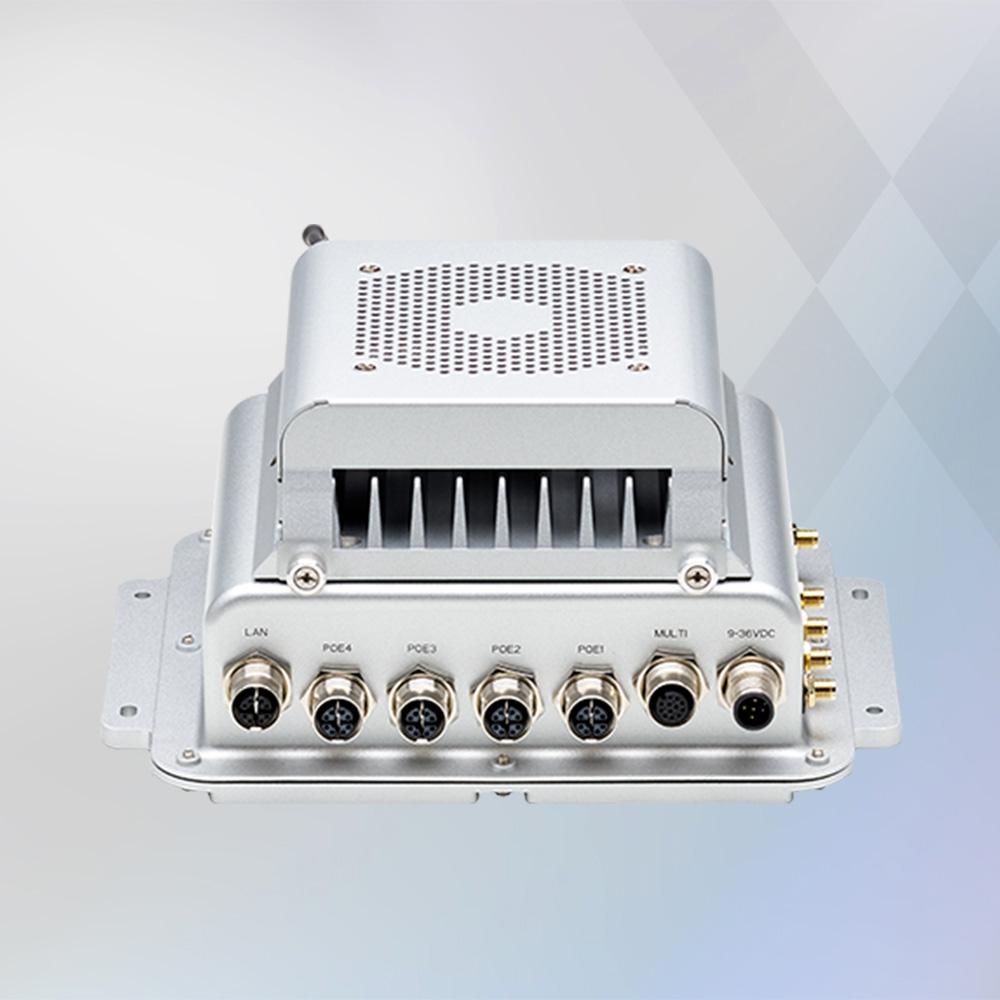

LAN4 x 1GbE M12 X-coded PoE+ connector
-
COM1 x RS-232 (Tx, Rx, CTS, RTS)
1 x RS-232 (Tx, Rx)
1 x Console port (Tx, Rx)
RS-232 working voltage ± 9V, baud rate up to 115.2kb/s
Connector: MULTI port (M12 A-coded) -
USB2 x USB 3.2, Type-A
-5V@900mA each
-up to 5Gbit/s link speed & compliance with USB 2.0 (LS/FS/HS link speed)
1 x OTG Micro-USB, 2 x USB 2.0 wafer-type (reserved) -
DIO4-Bit input
-Source: DC 9V~36V (12V@0.6mA/24V@1.2mA)
-External: DC 0V~33V pull-high, high-level, DC 3.3V~33V; low-level, DC 0V~2V
4-Bit output
-Source: DC 9V~36V (nominal 35mA@24V)
-External: DC 5V~27V pull-high, sink current w/ 220mA for each bit, 500mA max (@25C)
Source or external can be selected by software (default: source type) -
CAN1 x CAN 2.0A/2.0B
-
M.21 x M.2 Key M 2280/3080 PCIe 3.0 x4
1 x M.2 Key B 3042/3052 (USB 3.2) with 2 x micro-SIM slot -
PCIe1 x Full size Mini PCIe slot (PCIe 4.0 + USB 2.0)
-
PowerDC 9V~36V
-
Dimensions213mm (W) x 167mm (D) x 104mm (H)
-
Weight2.5kg
-
Operating SystemNEXCOM Aided Linux (NAL) w/ Jetpack 6.2 integrated
-NEXCOM custom functions (GNSS, 5G NR, 6-axis sensor, MCU control)
-Ubuntu 22.04@Kernel 5.15 -
EnvironmentOperating temperature: -25°C~60°C (fan kit, in Super Mode, w/ 30W PoE)
Storage temperature: -40°C~85°C
Relative humidity: 10%~95% (non-condensing) -
CertificationsCE approval, FCC Class A, UKCA, E13
-
GNSSu-blox NEO-M9N GNSS module for GPS/GLONASS/QZSS/Galileo/Beidou
Optional DR (dead reckoning) function, NEO-M9V -
WWAN2 x micro-SIM slot
