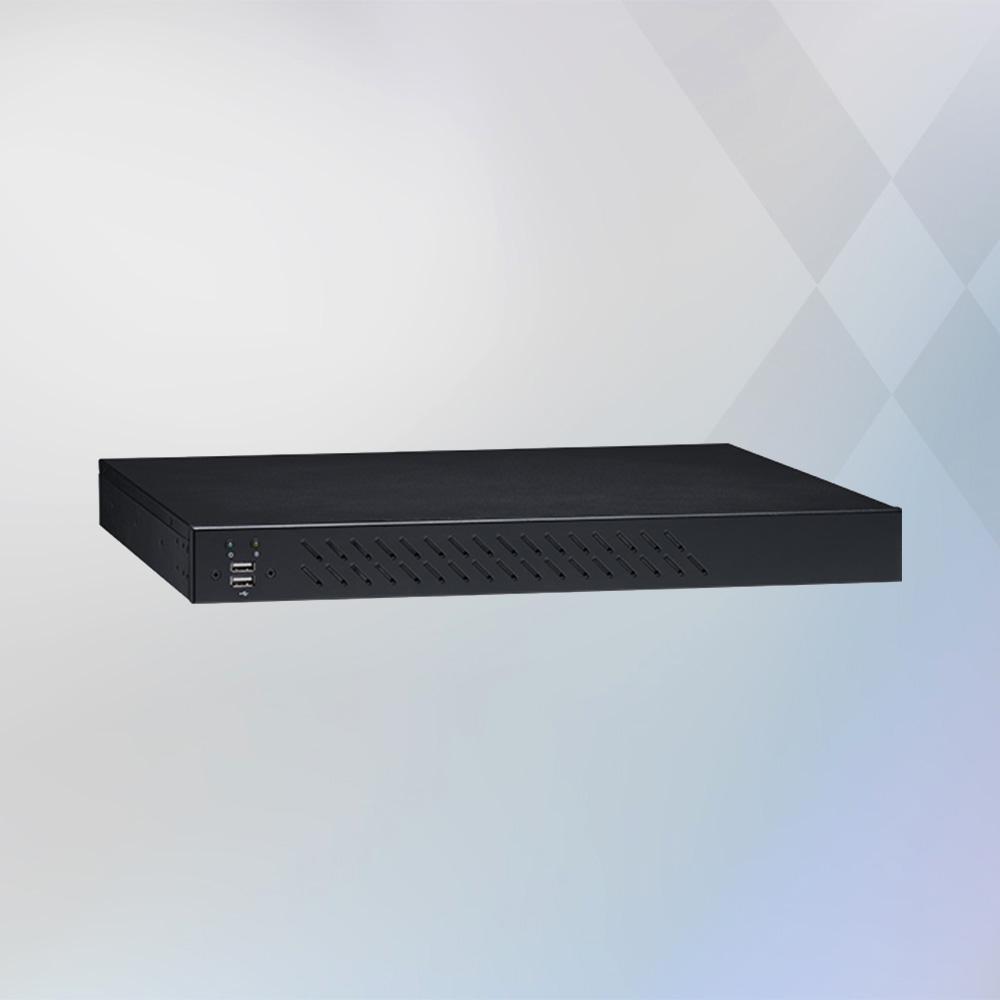

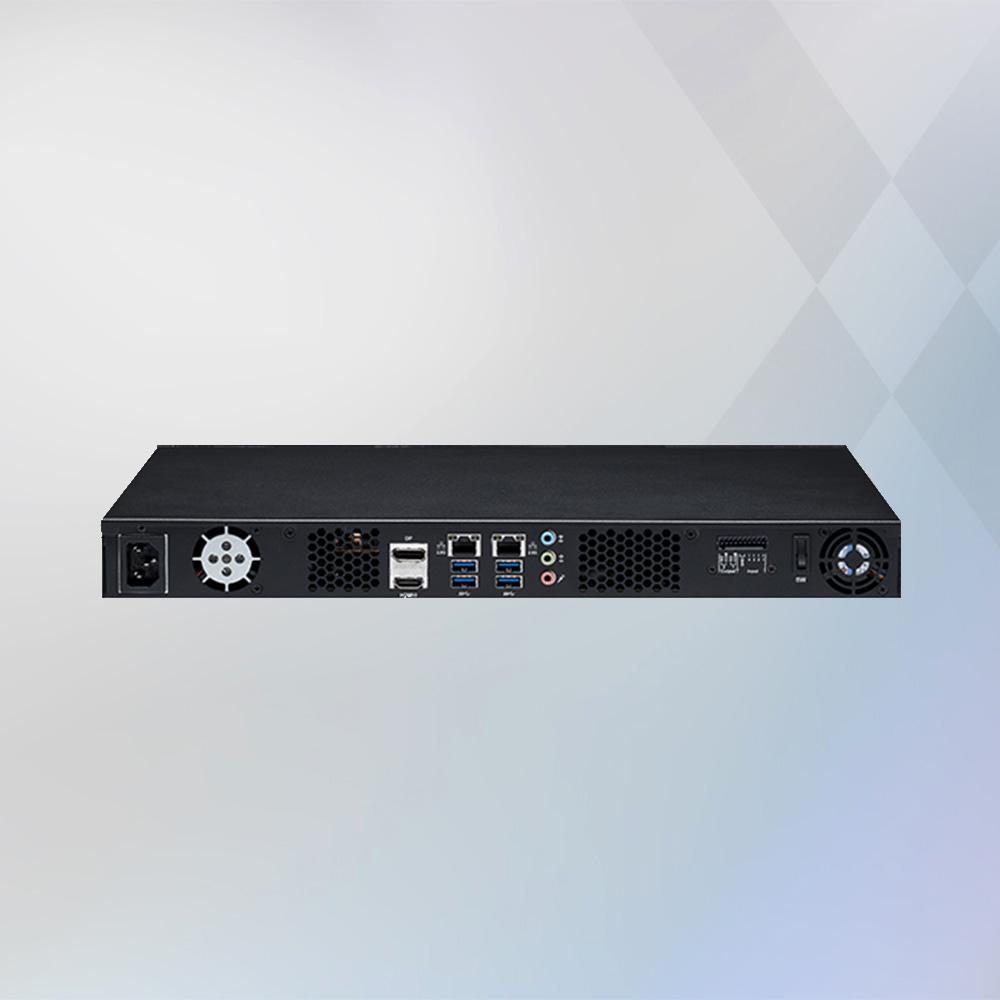

AI NVR Workstation with Intel® Core™ Ultra Processor (Series 2)

  • AI NVR workstation
  • Intel Core Ultra Processor (Serial 2)
  • HDD 2 Bays 3.5” (Support RAID 0,1)
  • 2 x NVME SSD
  • Display DP 1.4, HDMI® 2.0b x1
  • Intel® Arc™(Xe-Core) Graphics
  • DDR5 up to 64GB
  • 2 X 2.5GbE Intel® Ethernet
  • High-quality digital streaming
  • AI-driven workloads

Introduction

Product Overview

The NVAiS 1502 NVR, powered by Intel® Core™ Ultra processor (series 2) with integrated NPU, delivers up to 13~36 platform TOPS (by CPU SKU) to accelerate machine learning, reduce CPU workload by up to 70%, and enable real-time inference and generative AI applications. The integrated AI accelerators work in harmony with Intel® Arc™ (Xe-Core) Graphics to enhance neural network processing. The NVAiS 1502 supports up to 64GB of DDR5 memory, optimized through Intel® Extreme Memory Profile (Intel® XMP) for dynamic overclocking, and features Intel® Extreme Tuning Utility (Intel® XTU) for real-time granular adjustments, allowing users to maximize system performance.
The device is equipped with dual Intel® 2.5GbE ports for high-speed networking, and offers versatile display outputs with DP 1.4 and HDMI® 2.0b support, ensuring high-quality visuals across multiple monitors. For storage, in addition to NVMe SSD options, the NVAiS 1502 can accommodate two 3.5” HDDs to support RAID 0/1 configurations, providing a robust, high-capacity, and high-speed storage solution tailored to meet the needs of intensive AI and multimedia applications.

Specifications

  • CPU
    Intel® Core™ Ultra Processor (Series 2)
  • Chipset
    Intel® Q870 (option W880)
  • Memory
    2 x DDR5 6400 C/SO-DIMM, non-ECC, up to 64GB
    Support OOB ECC in W880 (optional)
  • Graphics
    Intel® Arc™ (Xe-Core)
  • Storage
    HDD 2 Bays 3.5”, supports RAID 0,1
    2 x M.2 Key M 2280 (1 x NVMe Gen5 and 1 x NVMe Gen4)
    1 x M.2 Key B 2242 (NVMe SATA)
  • Display
    1 x DP 1.4 (4K@60fps)
    1 x HDMI® 2.0b (4K@60fps)
  • LAN
    2 x 2.5GbE RJ45 port
  • USB
    2 x USB 2.0 Type-A (Per port output Max 500mA)
    4 x USB 3.2 Gen 1, Type-A (Per port output Max 900mA)
  • M.2
    2 x M.2 Key M 2280 (1 x NVMe Gen5 and 1 x NVMe Gen4)
    1 x M.2 Key B 2242 (NVMe SATA)
  • PCIe
    1 x Full-size Mini PCIe slot (PCIe 4.0 + USB 2.0)
  • Power
    Single PSU 300W
  • Dimensions
    482.45mm (W) x 43.5mm (H) x 576.63mm (D)
  • Environment
    Operating temperature:
    -Ambient with air flow: 0°C~40°C
    -Storage temperature: -20°C~70°C
    Relative humidity: 0%~90% (non-condensing)
  • Certifications
    CE approval
    FCC Class A
    CB/UL Option
