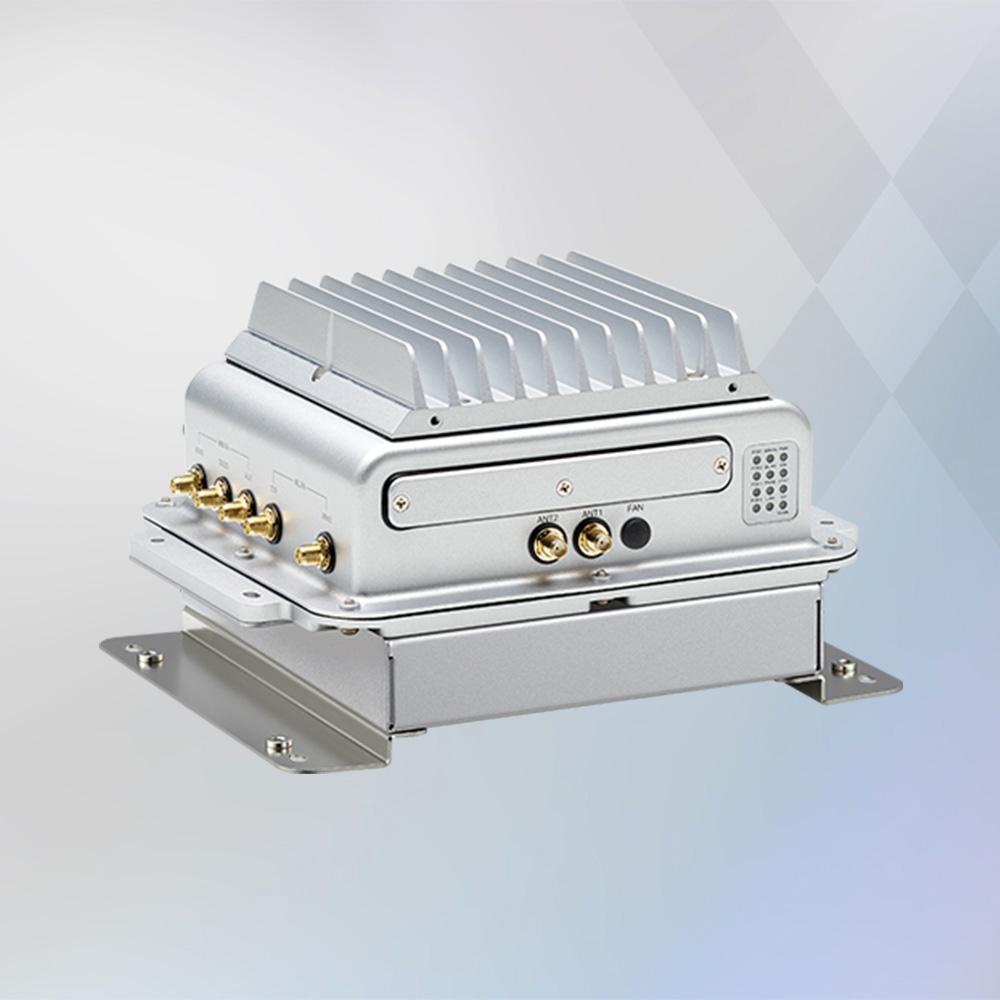

AI has become a vital part of autonomous vehicle technologies. Equipped with the high-performance NVIDIA Jetson Orin™ NX SoM, the ATC 3560-IP7-NXAI4CR delivers up to 100 TOPS of AI inference performance while consuming 25W low power. This is suitable for AI power IoT gateway, OHV AI Edge recognition, AI traffic sign control, and factory automation/machine vision, enhancing productivity and lowering TCO.

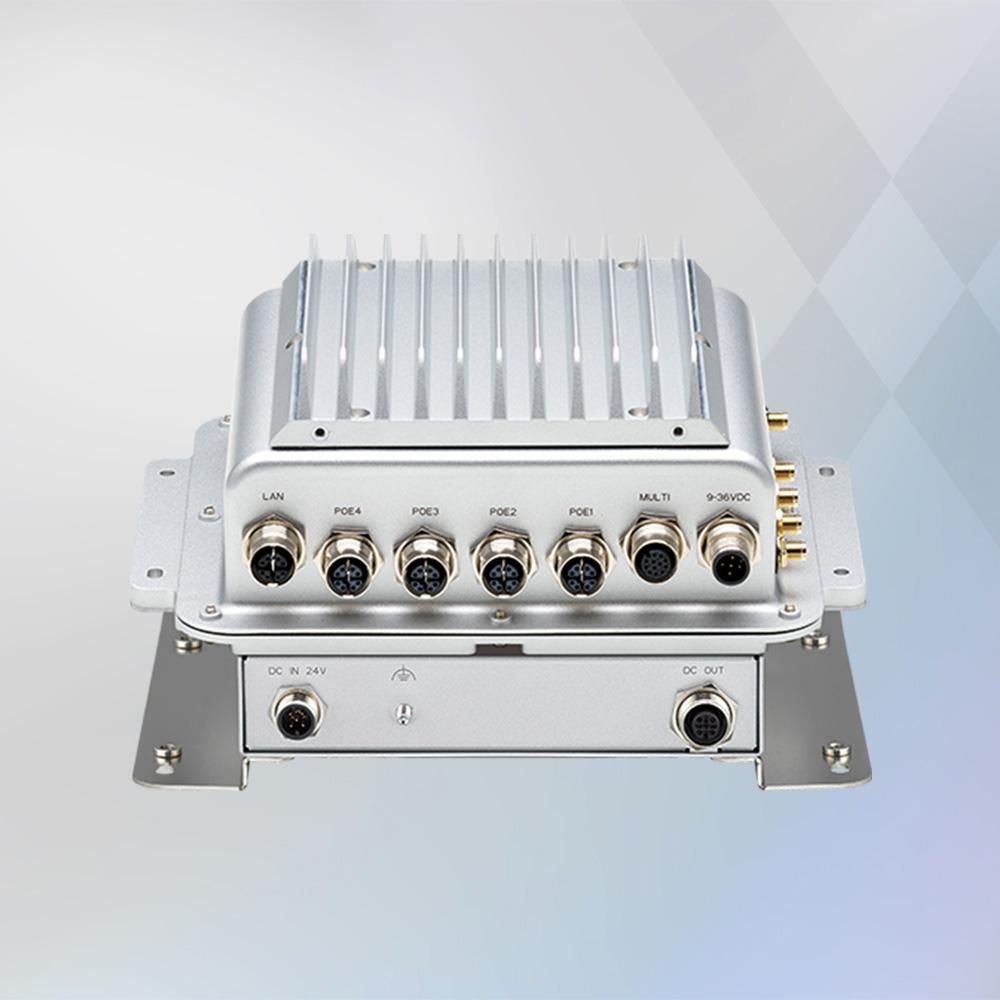

The ATC 3560-IP7-NXAI4CR is a fanless, compact, and IP67 certified computer. It features rail DC 24V power input with IGN control, four PoE+ ports for IP CAM deployment to 4K@30Hz/1080@60Hz. Moreover, the ATC 3560-IP7-NXAI4CR is designed with diverse peripheral ports, like USB 3.2, isolated CAN bus, RS-232, Console, DI/DO, OTG, and HDMI® for connecting to a wide range of devices/sensors.
With the 5G NR, Wi-Fi 5/6 modules installed, the ATC 3560-IP7-NXAI4CR can enhance AI inference through Cloud Service Provider (CSP). As for harsh environment applications, the ATC 3560-IP7-NXAI4CR can operate at a wide range temperature of -35~70°C and meet the MIL-STD-810G military standard for vibration and shock resistance. In terms of regulation, the ATC 3560-IP7-NXAI4CR is compliant with CE/FCC Class A, UKCA, and EN 50155.
Specifications
-
CPU6-core Arm® Cortex®-A78AE v8.2 64-bit
8-core Arm® Cortex®-A78AE v8.2 64-bit -
Memory8GB 128-bit LPDDR5 102.4GB/s
16GB 128-bit LPDDR5 102GB/s, 3200MHz in frequency -
Graphics1024-core NVIDIA® Ampere architecture with 32 Tensor Cores
-
Storage1 x M.2 Key M 2280/3080 PCIe 3.0 x4 NVMe SSD, 128GB in default
-
Display1 x HDMI® 2.0a/b, up to 3840x2160@60Hz
-
LAN4 x 1GbE M12 X-coded PoE+ connector
-
COM1 x RS-232 (Tx, Rx, CTS, RTS)
1 x RS-232 (Tx, Rx)
1 x Console port (Tx, Rx)
RS-232 working voltage ± 9V, baud rate up to 115.2kb/s
Connector: MULTI port (M12 A-coded) -
USB2 x USB 3.2, Type-A
-5V@900mA each
-up to 5Gbit/s link speed & compliance with USB 2.0 (LS/FS/HS link speed)
1 x OTG Micro-USB, 2 x USB 2.0 wafer-type (reserved) -
DIO4-Bit input
-Source: DC 9V~36V (12V@0.6mA/24V@1.2mA)
-External: DC 0V~33V pull-high, high-level, DC 3.3V~33V; low-level, DC 0V~2V
4-Bit output
-Source: DC 9V~36V (nominal 35mA@24V)
-External: DC 5V~27V pull-high, sink current w/ 220mA for each bit, 500mA max (@25C)
Source or external can be selected by software (default: source type) -
CAN1 x CAN 2.0A/2.0B
-
M.21 x M.2 Key M 2280/3080 PCIe 3.0 x4
1 x M.2 Key B 3042/3052 (USB 3.2) with 2 x micro-SIM slot -
PCIe1 x Full-size Mini PCIe slot (PCIe 4.0 + USB 2.0)
-
PowerDC 24V for rail
-
Dimensions213mm (W) x 167mm (D) x 122.8mm (H) (w/ mount bracket)
-
Weight3.2kg
-
Operating SystemNEXCOM Aided Linux (NAL) w/ Jetpack 6.2 integrated
-NEXCOM custom functions (GNSS, 5G NR, 6-axis sensor, MCU control)
-Ubuntu 22.04@Kernel 5.15 -
EnvironmentOperating temperature: EN 50155, class OT3 (-35°C~70°C), 85°C for 10 minutes (w/ 30W PoE)
Storage temperature: -40°C~85°C
Relative humidity: 10%~95% (non-condensing) -
CertificationsCE approval, FCC Class A, UKCA
EN 50155 Class OT3 -
GNSSu-blox NEO-M9N GNSS module for GPS/GLONASS/QZSS/Galileo/Beidou
Optional DR (dead reckoning) function, NEO-M9V -
WWAN2 x micro-SIM slot
