Introduction
Product Overview
AI has become a vital part of autonomous vehicle technologies. Equipped with the high-performance NVIDIA® Jetson Orin™ NX SoM, the ATC 3562-NX4MF delivers up to 157 TOPS of AI inference performance (16GB version in Super Mode), making it ideal for applications such as Advanced Driver Assistance Systems (ADAS) in transportation and construction, Automatic Number Plate Recognition (ANPR), Autonomous Mobile Robots (AMR), Machine Learning (ML), Intelligent Transportation Systems (ITS), railway safety assurance, and factory automation.
Thanks to NEXCOM’s advanced thermal design and its full IP67 rating, the ATC 3562-NX4MF can maintain up to 117 TOPS (8GB version), or 157 TOPS (16GB version) even in harsh conditions, enabling consistent real-time AI inference.

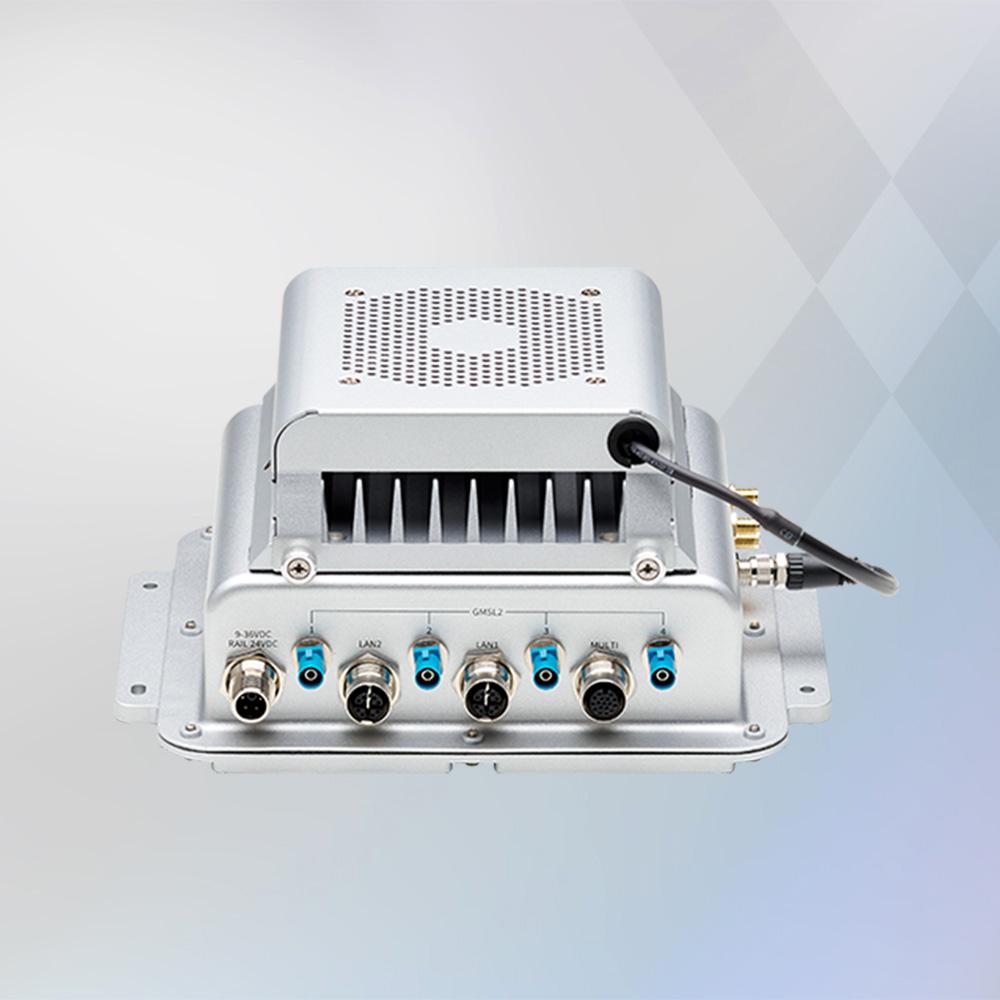

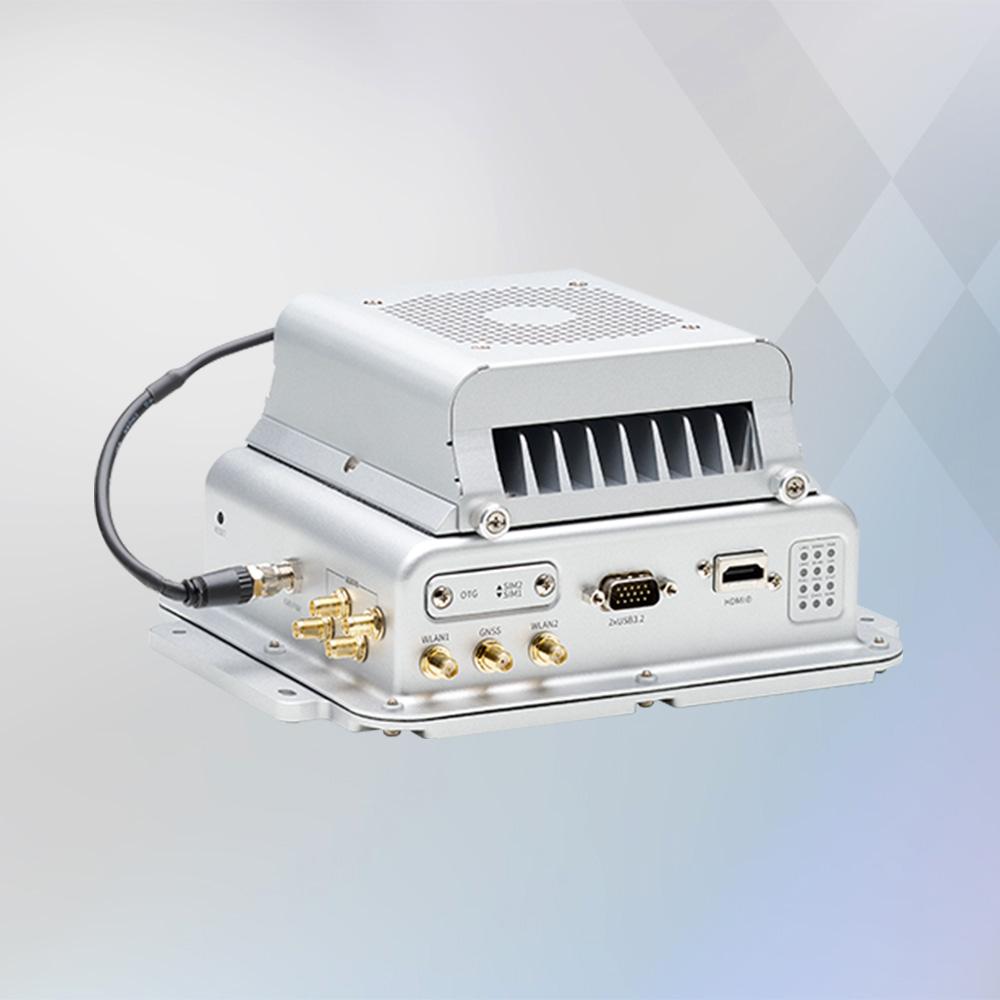

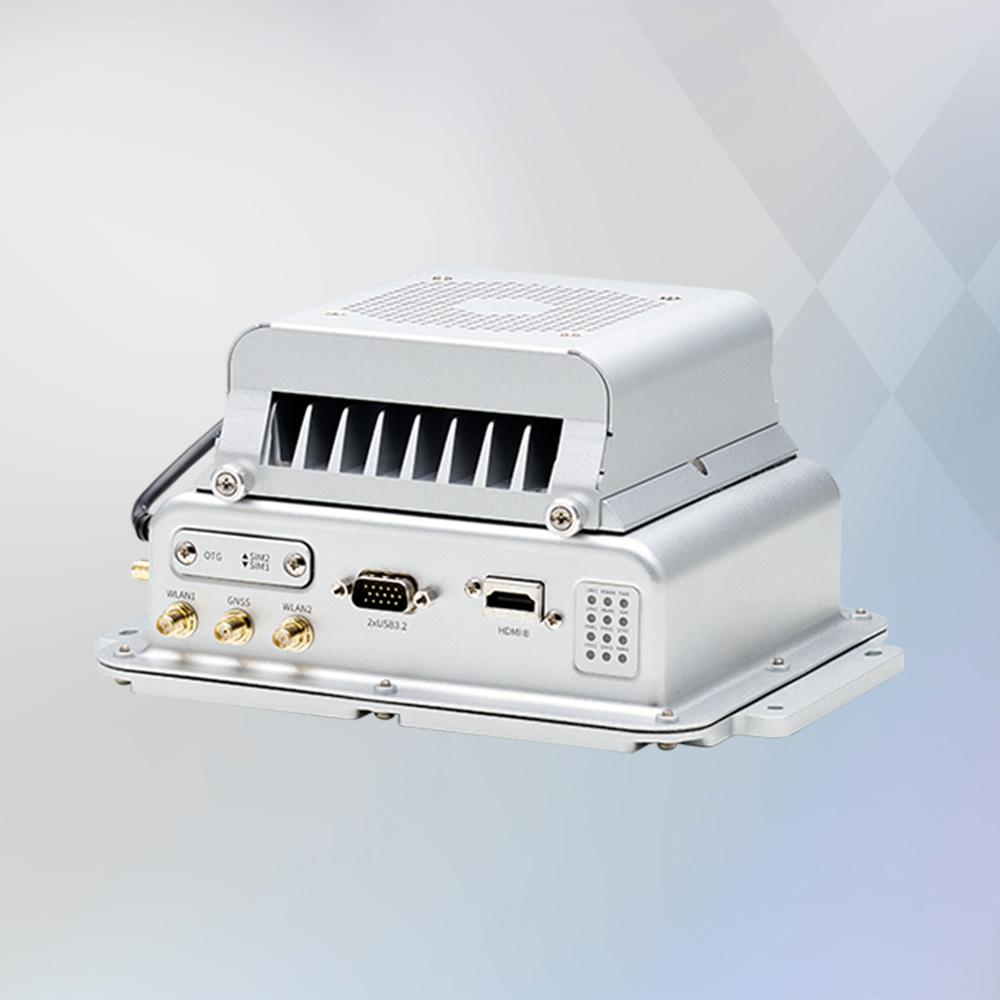

The ATC 3562-NX4MF is purpose-built for in-vehicle and railway AI computing. It supports DC 9V to 36V/24V rail power with IGN control, and features 4-CH GMSL2 interface and GbE PoE functionality for long-distance GMSL2 cameras and LiDAR sensors. It also offers a wide range of I/O, including USB 3.2, isolated CAN bus, RS-232, console port, digital I/O (DI/DO), OTG, and HDMI®. With optional 5G NR and Wi-Fi 5/6 modules, the ATC 3562-NX4MF can connect with CPS (Cyber-Physical Systems) for AI model retraining, enhancing inference precision in the field.
Built to endure tough conditions, the ATC 3562-NX4MF supports an operating temperature range of -25°C to 65°C, and complies with MIL-STD-810H for resistance to shock and vibration. It is certified to CE/FCC Class A, UKCA, EN 50155, EN 45545-2, and E-mark standards.
Specifications
-
CPU6-core Arm® Cortex®-A78AE v8.2 64-bit
8-core Arm® Cortex®-A78AE v8.2 64-bit -
Fanw/ fan kit
-
Memory8GB 128-bit LPDDR5 102.4GB/s
16GB 128-bit LPDDR5 102GB/s, 3200MHz in frequency -
Graphics1024-core NVIDIA® Ampere architecture with 32 Tensor Cores
-
Storage1 x M.2 Key M 2280 PCIe 3.0 x4 NVMe SSD, 128GB in default
-
Display1 x HDMI® 2.0a/b, up to 3840x2160@60Hz, waterproof
-
LAN2 x GbE M12 X-coded connector
-9Kbyte Jumbo frame, PTP (IEEE 1588) supported
-Switching: Realtek RTL8367RBI-VH-CG-I
-PoE+ (30W PSE) in option -
COM1 x RS-232 (Tx, Rx)
-RS-232 working voltage ± 9V, baud rate up to 115.2kb/s
-Connector: MULTI-port (M12 A-coded)
1 x Console (Tx, Rx), wafer reserved -
USB2 x USB 3.2 (DB 15, waterproof)
-5V@900mA each
-up to 5Gbit/s link speed & compliance with USB 2.0 (LS/FS/HS link speed)
1 x OTG Micro-USB (w/ a door) -
DIO4-Bit input
-Source: DC 9V~36V (12V@0.6mA/24V@1.2mA)
-External: DC 0V~33V pull-high, high-level, DC 3.3V~33V; low-level, DC 0V~2V
4-Bit output
-Source: DC 9V~36V (nominal 35mA@24V)
-External: DC 5V~27V pull-high, sink current w/ 220mA for each bit, 500mA max (@25C)
Source or external can be selected by software (default: source type)
Connector: MULTI-port (M12 A-coded) -
CAN1 x CAN FD, compatible with CAN 2.0A/2.0B
-
M.21 x M.2 Key M 2280 PCIe 3.0 x4 NVMe SSD
1 x M.2 Key E 2230 (PCIe 4.0 + USB 2.0)
1 x M.2 Key B 3042/3052 (USB 3.2) with 2 x nano-SIM slot -
PowerDC 9V~36V/24V rail
-
Dimensions242.1mm (W) x 167mm (D) x 113.4mm (H) (w/ mount bracket)
-
Weight2.4kg
-
Operating SystemNEXCOM Aided Linux (NAL) w/ Jetpack 6.2 integrated
-NEXCOM custom functions (GNSS, 5G NR, 6-axis sensor, MCU control)
-V4L2
-Ubuntu 22.04@Kernel 5.15 -
EnvironmentOperating temperature:
--25°C~65°C (fan kit, in Super Mode)
--25°C~65°C (fanless, in Normal Mode)
Storage temperature: -40°C~85°C
Relative humidity: 10%~95% (non-condensing) -
CertificationsCE/FCC, UKCA, E-mark, EN 50155, and EN 45545-2
-
GNSSu-blox NEO-M9N GNSS module for GPS/GLONASS/QZSS/Galileo/Beidou
Optional DR (dead reckoning) function, NEO-M9V -
WWAN2 x nano-SIM slot
