Product Overview

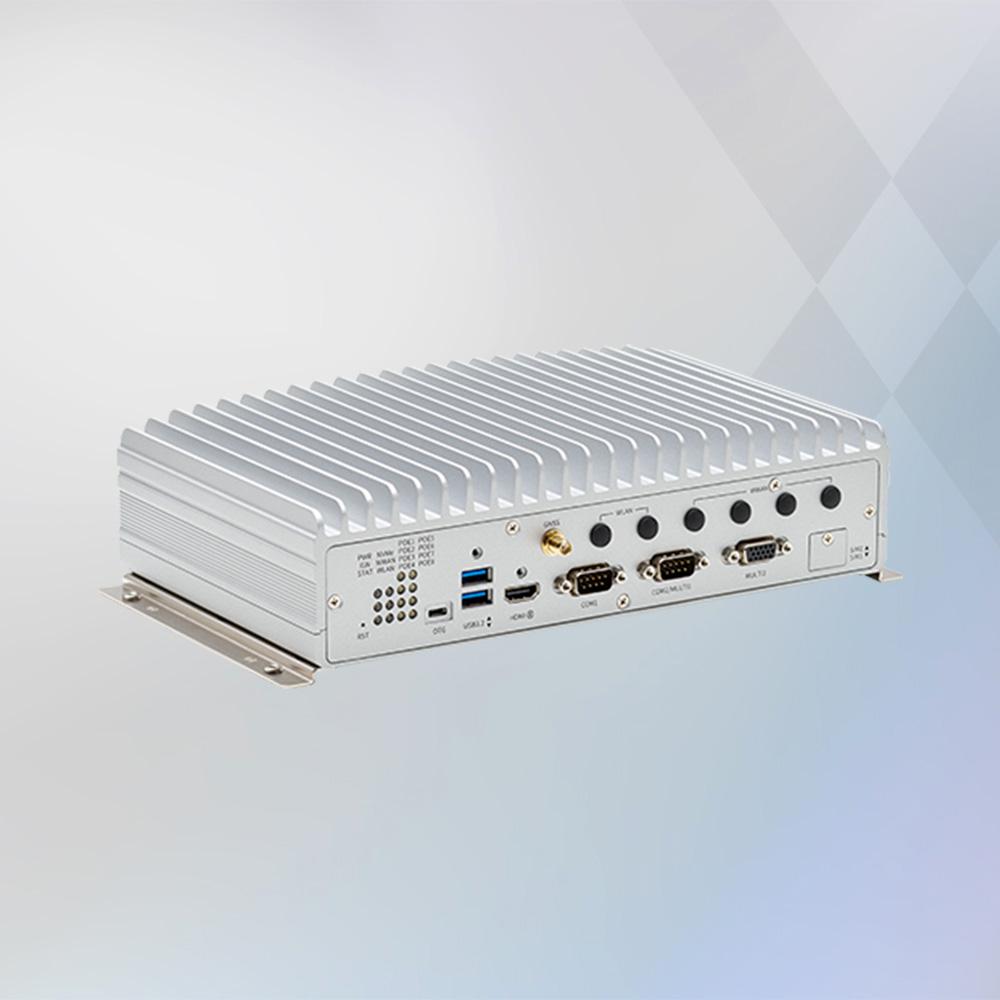

AI has become a vital part of autonomous vehicle technologies. Equipped with the high-performance NVIDIA Jetson Orin Nano™ SoM, the ATC 3563-NA8C/NAA8CR delivers up to 67 INT TOPS of AI inference performance in Super Mode, making it ideal for applications such as Advanced Driver Assistance Systems (ADAS) in transportation and construction, Automatic Number Plate Recognition (ANPR), Autonomous Mobile Robots (AMR), Machine Learning (ML), Intelligent Transportation Systems (ITS), Railway safety assurance, and factory automation.
Thanks to NEXCOM’s advanced thermal design, the ATC 3563-NA8C/NAA8CR can maintain up to 67 TOPS even in harsh conditions, enabling consistent real-time AI inference.
The ATC 3563-NA8C/NAA8CR is purpose-built for in-vehicle and railway AI computing. It supports DC 9V to 36V/24V rail power with IGN control, and features eight GbE PoE ports for long-distance IP cameras and LiDAR sensors. It also offers a wide range of I/O, including USB 3.2, isolated CAN bus, RS-232, console port, digital I/O (DI/DO), OTG, and HDMI®. With optional 5G NR and Wi-Fi 5/6 modules, the ATC 3563-NA8C/NAA8CR can connect with CPS (Cyber-Physical Systems) for AI model retraining, enhancing inference precision in the field.
Built to endure tough conditions, the ATC 3563-NA8C/NAA8CR supports an operating temperature range of -25°C to 60°C, and complies with MIL-STD-810H for resistance to shock and vibration. It is certified to CE/FCC Class A, UKCA, E-mark and EN 50155, EN 45545-2 standards.
Specifications
-
CPU6-core Arm® Cortex®-A78AE v8.2 64-bit
-
Memory8GB 128-bit LPDDR5 102GB/s, 2133/3199MHz in frequency
-
Graphics1024-core NVIDIA® Ampere architecture with 32 Tensor Cores
-
Storage1 x M.2 Key M 2280 PCIe 3.0 x4 NVMe SSD, 128GB in default
-
Display1 x HDMI® 2.0a/b, up to 3840x2160@60Hz
-
LAN8 x 1GbE PoE+ RJ45/X-coded
-
COM1 x RS-232 (Tx, Rx)
-RS-232 working voltage ± 9V, baud rate up to 115.2kb/s
-Connector: MULTI-port (DB15)
1 x Console port (Tx, Rx), wafer reserved -
USB2 x USB 3.2, Type-A
-5V@900mA each
-up to 5Gbit/s link speed & compliance with USB 2.0 (LS/FS/HS link speed)
1 x OTG Micro-USB (w/ a door)
1 x USB 2.0, wafer reserved -
DIO4-Bit input, isolation
-Source: DC 9V~36V (12V@0.6mA/24V@1.2mA)
-External: DC 0V~33V pull-high, high-level, DC 3.3V~33V; low-level, DC 0V~2V
4-Bit output, isolation
-Source: DC 9V~36V (nominal 35mA@24V)
-External: DC 5V~27V pull-high, sink current w/ 220mA for each bit, 500mA max (@25C)
Source or external can be selected by software (default: source type)
Connector: MULTI-port (DB15) -
CAN1 x CAN FD, compatible with CAN 2.0A/2.0B
-
M.21 x M.2 Key M 2280 PCIe 3.0 x4 NVMe SSD
1 x M.2 Key E 2230 (PCIe 4.0 + USB 2.0)
1 x M.2 Key B 3042/3052 (USB 3.2/2.0) with 2 x nano-SIM slot -
PowerNominal voltage: DC 9V~36V/24V rail
-ATC 3563-NA8C: DC 9V~36V, cranking voltage of DC 6V~9V (less than 20 sec), terminal block

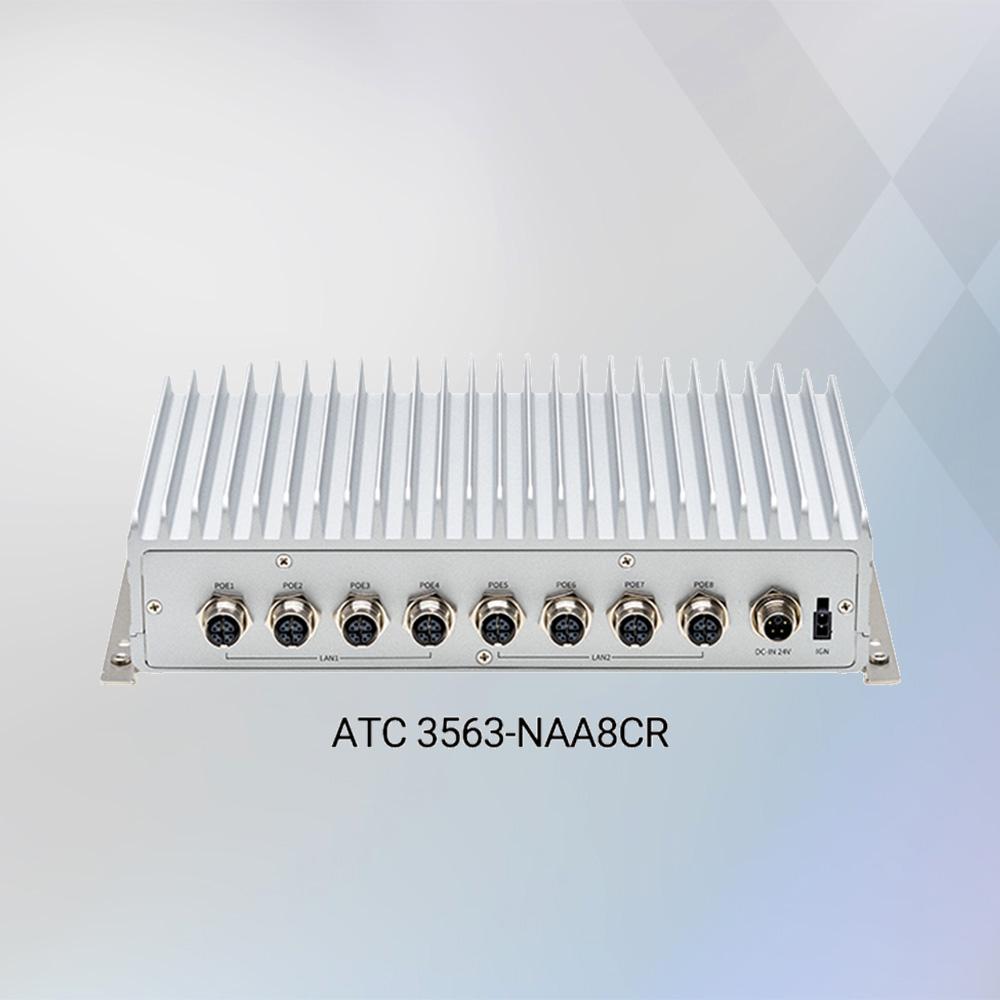

-ATC 3563-NAA8CR: DC 24V (14.4V~33.6V), K-coded -
Dimensions284mm (W) x 155mm (D) x 74.5mm (H) (w/ mount bracket)
-
WeightATC 3563-NA8C: 3.2kg
ATC 3563-NAA8CR: 3.3kg -
Operating SystemNEXCOM Aided Linux (NAL) w/ Jetpack 6.2 integrated
-NEXCOM custom functions (GNSS, 5G NR, 6-axis sensor, MCU control)
-V4L2
-Ubuntu 22.04@Kernel 5.15 -
EnvironmentOperating temperature: -25°C~60°C (Super Mode)
Storage temperature: -40°C~85°C
Relative humidity: 10%~95% (non-condensing) -
CertificationsCE/FCC, UKCA, E-mark, EN 50155, and EN 45545-2
-
GNSSOnboard u-blox NEO-M9N GNSS module for GPS/GLONASS/QZSS/Galileo/Beidou
Optional NEO-M9V w/ DR (dead reckoning) function -
WWAN2 x nano-SIM slot
