Introduction
Product Overview

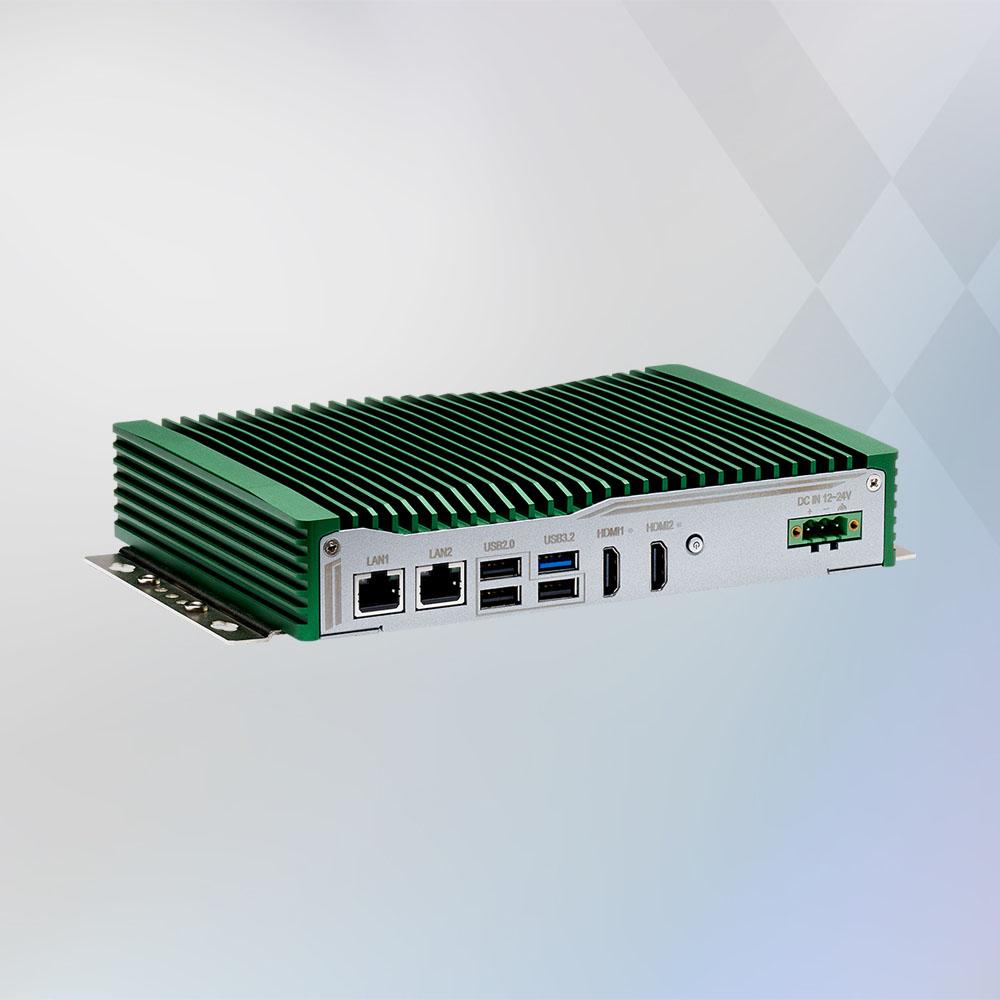

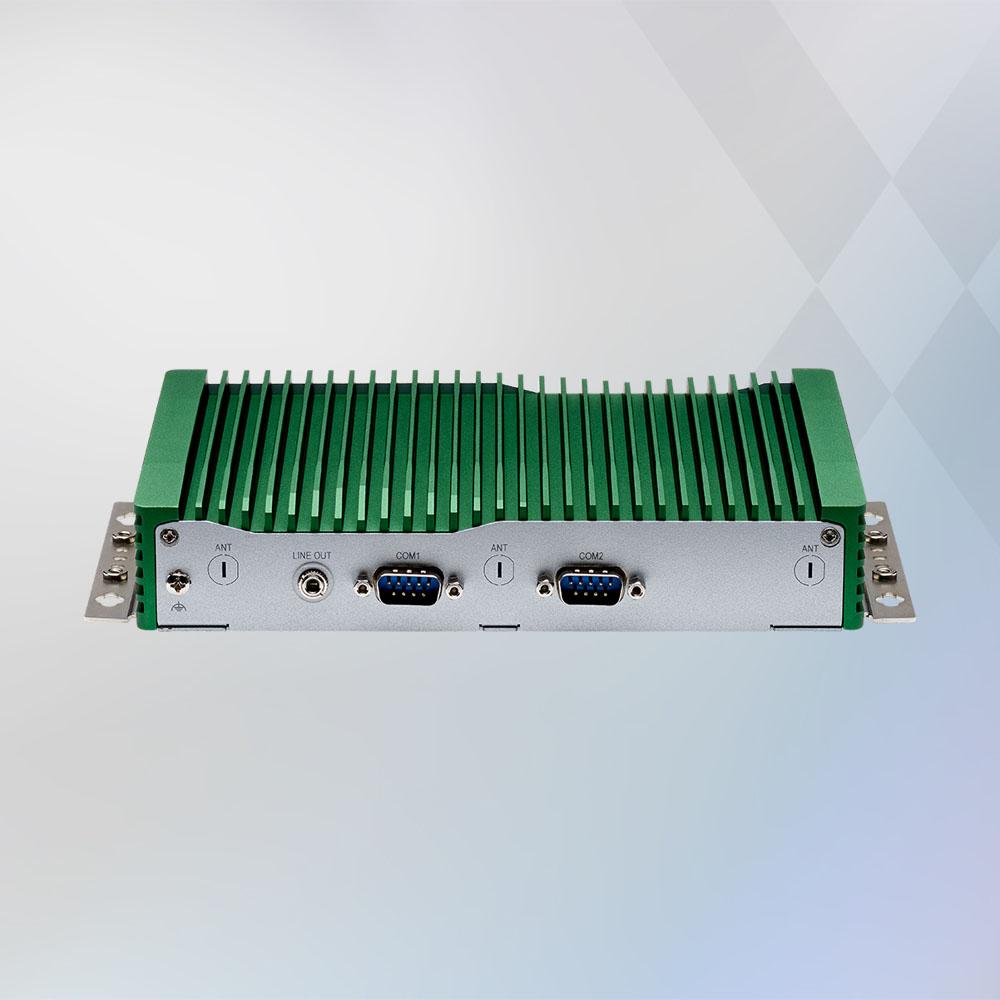

The NDiS B363 Visual Edge Computer harnesses the power of Intel® Core™ Ultra 7 and 5 processors, featuring an integrated NPU for AI inference. This advanced architecture optimizes workloads across the CPU, GPU, and NPU, enabling up to 22.5 TOPS of AI computing power with exceptional energy efficiency.
Dual HDMI® 2.0 ports deliver exceptional visuals, and a variety of I/O interfaces support a wide range of AI applications. Designed to operate in extreme temperatures from 0°C to 60°C, the NDiS B363 is ideal for semi-outdoor applications such as self-service kiosks, recycling machines, and intelligent parking systems.
Specifications
-
CPUMeteor Lake 265U, 12-core/5.3GHz,Intel® Core™ Ultra 7
Meteor Lake 255U, 12-core/5.2GHz,Intel® Core™ Ultra 7
Meteor Lake 235U, 12-core/4.9GHz,Intel® Core™ Ultra 5
Meteor Lake 225U, 12-core/4.8GHz,Intel Core Ultra 5
Only 265U/235U support Intel® AMT -
Memory2 x DDR5 6400 262-pin SO-DIMM, non-ECC, unbuffered, up to 96GB
-
GraphicsIntel® Graphics
-
Storage1 x M.2 Key M 2280 for optional SSD (PCIe 3.0 x4, SATA 3.0)
-
Display2 x HDMI 2.0, up to 4096 x 2160@60Hz
-
Audio1 x Line out
-
LAN1 x 2.5GbE RJ45 Port, Intel® i2261 x GbE RJ45 Port, Intel® I219
-
COM2 x COM Port, supports RS-232/RS422/RS485
-
USB1 x USB 3.2 Gen 1x1, Type-A3 x USB 2.0
-
GPIO1 x 10-pin header for GPIO, 4 x DI, 4 x DO
-
M.21 x M.2 Key E 2230 for optional Wi-Fi module
1 x M.2 Key B 3052/2242 for optional 5G/LTE module
(PCIe 3.0 x1, USB 3.0, USB 2.0) -
Power+12V to 24V power module
-
DimensionsDimension: 200mm (W) x 140mm (D) x 37mm (H) w/o bracket
-
WeightNet weight: 1.26 kg/Unit
-
Operating SystemWindows 11, 64bitWindows 10, 64bitLinux
-
EnvironmentAmbient with air flow: 0°C ~ 55°C (Core Ultra 7-265U & 255U)
Ambient with air flow: 0°C ~ 60°C (Core Ultra 5-235U & 225U) -
CertificationsCE Approval (EN50035 + EN50032)
FCC Class A (Part 15B)
LVD (EN62368-1) -
TPMTPM 2.0
